Product information "Osram Light management systems Osram LUXeye Sense DALI BT - 4052899957411"
The LUXeye app offers the full range of functions and allows you to customize and check all functions. A SmartDevice can be used to configure the parameters of light control, motion detection and advanced settings. In addition, predefined profiles for e.g. corridor, stairwell, meeting room can be selected.
LUXeye can also be controlled via the wall switch. The system is not only energy-efficient, but also offers a lot of comfort, since the lighting can also be controlled wirelessly from the workplace via Bluetooth.
The LUXeye app is available for free in the App Store for smartphones with iOS (≥8) operating systems or Google Play Store for smartphones running Android (≥ 4.4).
Fields of application
office
Meeting rooms
Training rooms
Corridors
Product properties
A DALI broadcast output channel for up to 20 DALI ballasts
Daylight-dependent control and presence-dependent light control
Operation via standard push button
Outputs with electronically reversible short-circuit and overload protection
Changing the run-on time by means of a screwdriver directly at the sensor
Change of illuminance with screwdriver directly at the sensor
Halogen-free polycarbonate plastic housing
Control unit with integrated light and presence sensor, DALI output channel
Presence detection via passive IR element
Light control with app connection via Bluetooth, light control via smartphone
Customize all settings via smartphone
Individual activation and deactivation of the light and presence sensor
Functional display with three-color LED

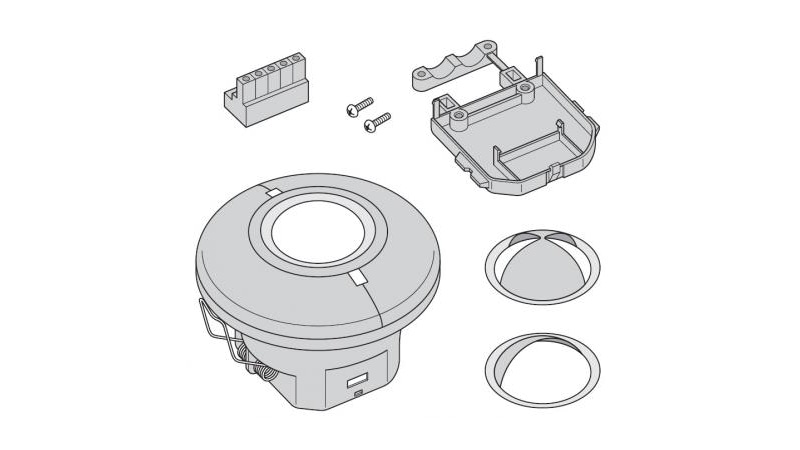

Various covers for different detection ranges included
Free App for IOS and Android available at App Store
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| fire protection: | no |
|---|---|
| form type: | PAR16 |
| protection type: | IP20 |
| material: | plastic |
| mounting: | ceiling mounting, Installation |
| protection class: | II |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | no |
|---|---|
| detection angle: | 110 ° |
| color: | white |
| interface: | DALI |
Logistic data
| country of origin: | Romania |
|---|

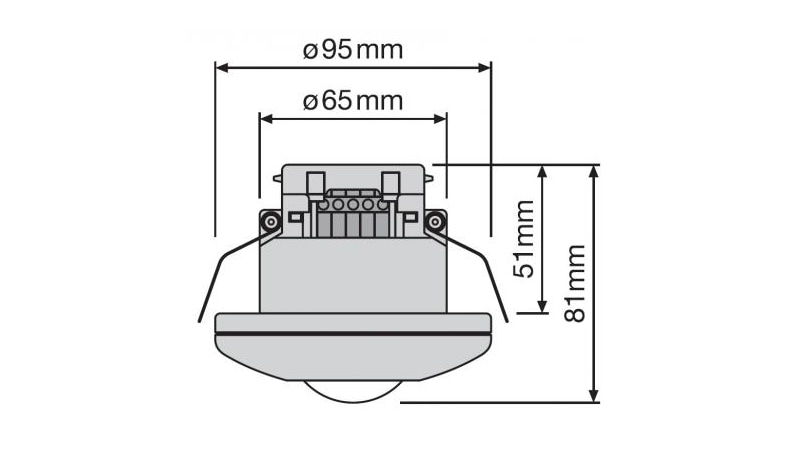

Dimensions & packaging
| EAN | 4052899957411 |
|---|---|
| Length | 90 mm |
| Width | 90 mm |
| Height | 81 mm |
| Weight | 144 g |
