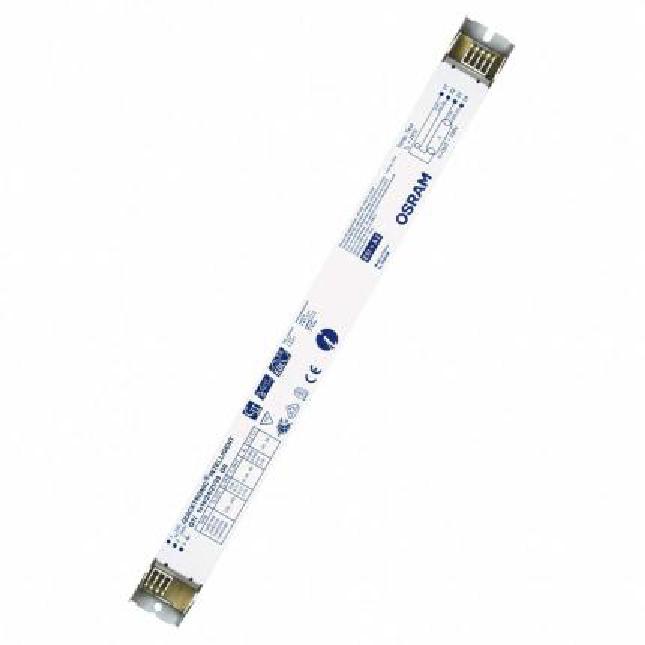

Osram QTi 1x28/54/35/49 GII - 4008321383358
Immediately available
Alternative Products
Shipping in 28 day(s)
Immediately available
€63.34
Prices incl. VAT plus shipping costs net €53.23
Product information "Osram QTi 1x28/54/35/49 GII - 4008321383358"
- Long lamp life
- High operating strength
- Automatic restart after relamping
- Perfect lamp starting for applications with motion
- VDE / VDE EMC certified system
- Maximum energy efficiency thanks to cut-off technology
Applications:
- Emergency lighting systems acc. EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors or storerooms
- Public buildings
- Sports halls and factories
- Rooflights
- Suitable for emergency lighting (DC operation)
- Modernization of existing plants
Attribute:
- Supply voltage: 220 ... 240 V
- Power supply voltage: 198 ... 264 V
- Frequency: 0 Hz, 50 ... 60 Hz
- Lamp start with optimum filament preheating
- Lifetime:> 100,000 h (at T = 65 ° C to Tc)
- Energy Efficiency Index EEI: A2 BAT
- Automatic safety shutdown of lamp defect or at end of life (EOL T.2)
- Security: Travel to EN 61347-2-3- Lamp: according to EN 60929
Downloads & Documents
Login
Electrical data
| through wiring: | no |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
| system power: | 59 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| material: | metal |
| mounting: | Installation |
| protection class: | I/II |
Photometric data
| dimmable: | no |
|---|---|
| solar panel: | no |
| start time: | 1 s |
Logistic data
| item category: | electronic ballasts |
|---|---|
| country of origin: | Bulgaria |

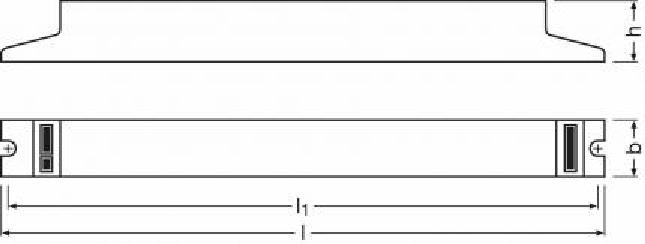

Dimensions & packaging
| EAN | 4008321383358 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 235 g |
