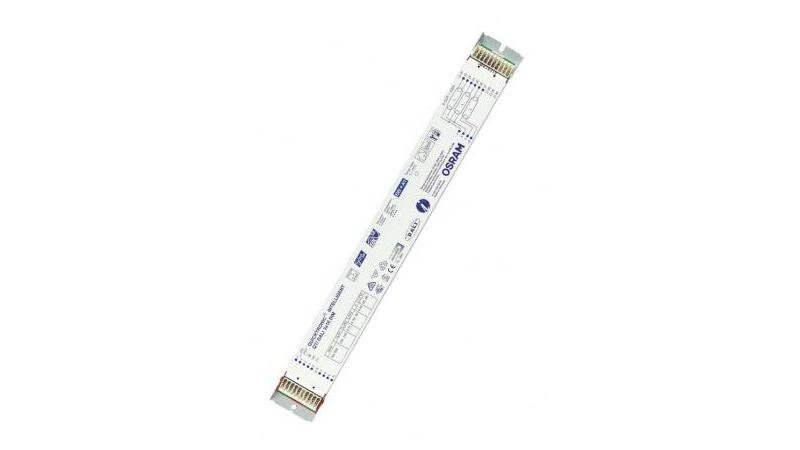

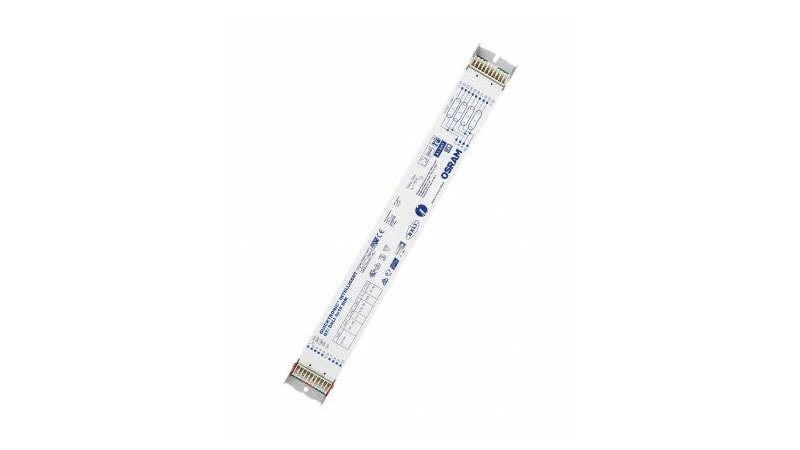

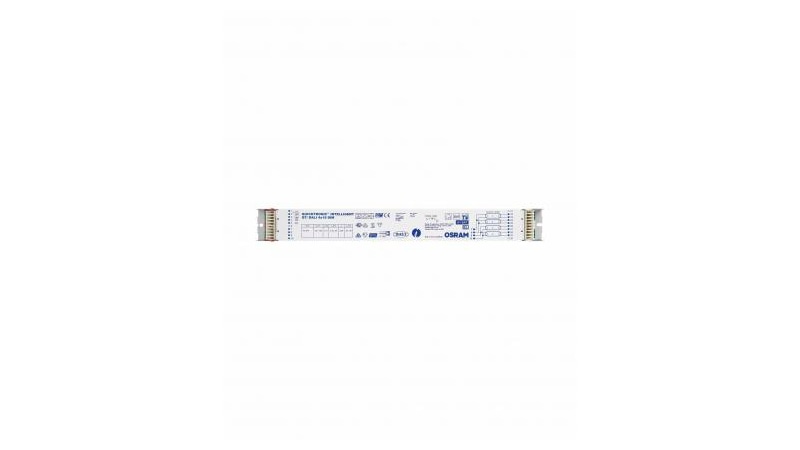

Osram QTi DALI 3x18 DIM - 4008321069979
Product information "Osram QTi DALI 3x18 DIM - 4008321069979"
Attribute
advantages
- Corridor function for direct connection of the ECG to commercial motion
- Corridor function with preset light program
- TouchDIM function for free parameterization of the light value and the switch-on
- Fit for SMART gRID for feedback from recorded network performance and lamp hours
- Fit for Emergency function for automatic detection of emergency lighting by EVG
- Very low standby power consumption: & lt; 0.2 W (A1 BAT)
- life: up to 100,000 hours (at T c = 65 ° C, max 10% failure rate.)
- Very high switching capability: up to 300,000
- dimming range: 1 ... 100% (3 ... 100% with compact fluorescent lamp)
- POWER2LAMP function for optimal adaptation of the TOE performance the lamp during lamp life
advantages
- system + guarantee available
- Simple luminaire integration thanks to the same device size as DALI GI EVG
- TouchDIM function for simple and inexpensive dimming more ballasts
- Same luminous flux with direct and alternating voltage
- dimming of amalgam lamps without flickering or lifetime reduction
- Automatic restart after lamp replacement
- No new approvals necessary
- control via DALI interface
- compliance with the DALI standard to IEC 60929 and IEC 62386
- overvoltage protection control input and polarity protection (OSRAM ECG)
- Manual dimming without control unit with standard installation buttons
- Includes memory function (double-click) and soft start
- gem for use in emergency lighting systems. EN 50172 / DIN VDE 0108-100
- Built-in emergency lighting systems in accordance with IEC 61347-2-3, Appendix J
- Industry
- plan offices, corridors and warehouses
- Public buildings
- sports halls and factories
- rooflights
- Store lighting
application areas
References / References
More information on the system guarantee and the entire warranty conditions can be found online at www .osram.de /system warranty code
Downloads & Documents
s
Electrical data
| energy efficiency index: | A1BAT |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| material: | metal |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
| start time: | 0.6 s |
Logistic data
| item category: | electronic ballasts |
|---|---|
| country of origin: | China |

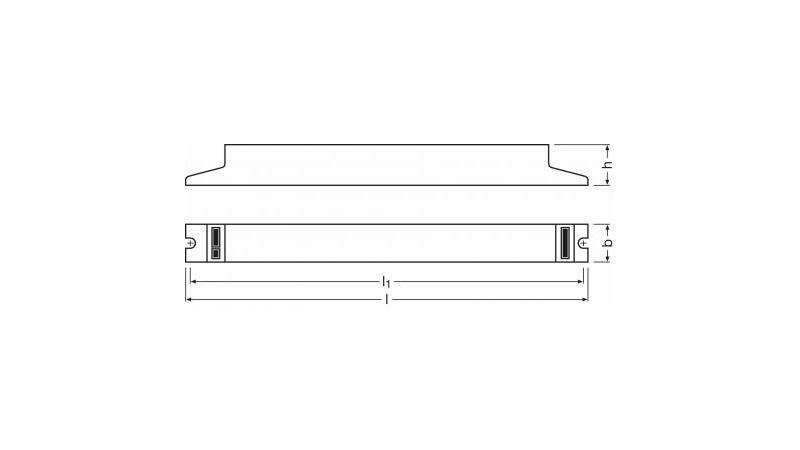

Dimensions & packaging
| EAN | 4008321069979 |
|---|---|
| Length | 360 mm |
| Width | 40 mm |
| Height | 21 mm |
| Weight | 386 g |
