PEHA Light Management On-wall PIR motion detector LightSpotHD DALI/DSI Hi-Bay - 991663
PEHA Light Management On-wall PIR motion detector LightSpotHD DALI/DSI Hi-Bay - 991663
Immediately available
€126.74
Prices incl. VAT plus shipping costs net €106.50
Product information "PEHA Light Management On-wall PIR motion detector LightSpotHD DALI/DSI Hi-Bay - 991663"

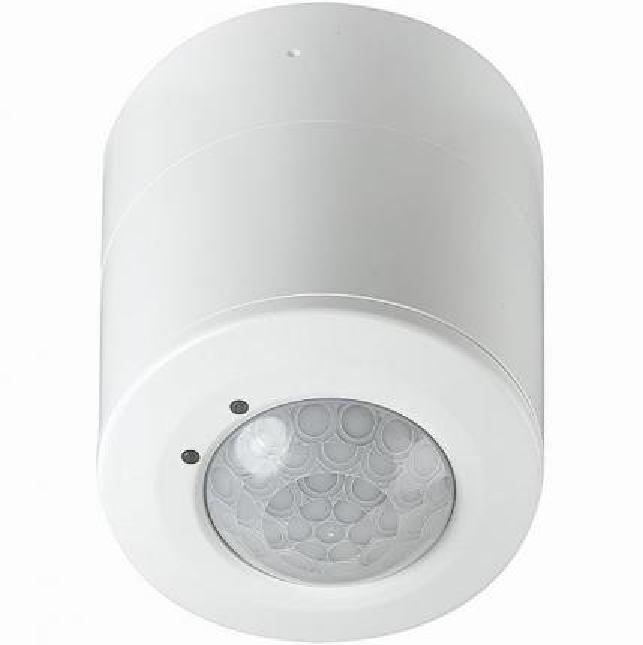

Using the surface mounted passive infrared motion detector for mounting in great heights from the PLS LightSpotHD series with dimming sensors by PEHA, you can control your lighting in an energy-efficient way. It has a DALI / DSI interface for 15 ballasts and an additional switching output.
The lighting controls of the new PEHA generation switch off the lights when nobody is present. If there is enough daylight, they dim or switch off the light accordingly. So they help save energy costs - up to 70% and year after year.
The motion detector offers shorter response times thanks to higher sensitivity as well, flexibility due to high-precision cover panels and low standby consumption.

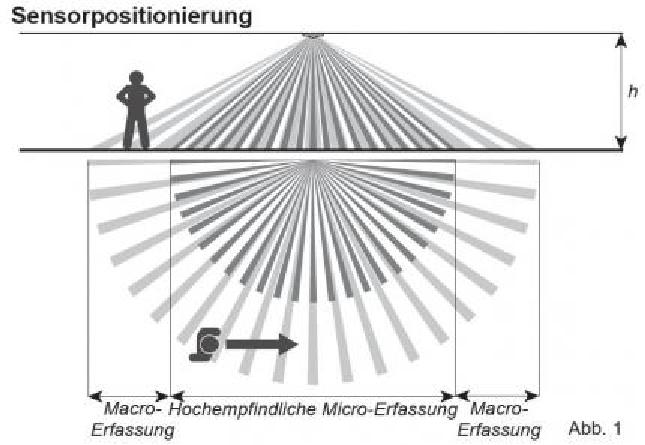

The PEHA PLS LightSpotHD PIR motion detector has a detection range of 360 ° (27 m diameter at 14 m mounting height). The maximum mounting height is 16 m so that it is ideally suited for mounting in warehouses, halls and industrial halls. The housing has IP4X protection.
Downloads & Documents
Declaration-of-Conformity-PEHA-Light-Management-On-wall-PIR-motion-detector-LightSpotHD-DALI-DSI-Hi-Bay-D-LS3000DRHBSM-00991663_1592154230_5
Instruction-manual-PEHA-Light-Management-On-wall-PIR-motion-detector-LightSpotHD-DALI-DSI-Hi-Bay-D-LS3000DRHBSM-00991663_1592154230_6
Konformitaetserklaerung-PEHA-Lichtmanagement-Aufbau-PIR-Bewegungsmelder-LightSpotHD-DALI-DSI-Hi-Bay-D-LS3000DRHBSM-00991663_1592154230_8
Login
Electrical data
| rated voltage: | 230 V |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP4X |
| mounting: | surface mounting |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | yes |
|---|---|
| detection angle: | 360 ° |
| interface: | DSI |
| sensor type: | passive infrared |
| solar panel: | no |
Logistic data
| item category: | sensors |
|---|
Dimensions & packaging
| EAN | 4010105991666 |
|---|---|
| Height | 110 mm |
| Weight | 280 g |
