PEHA Light ManagementEnOcean Easyclickpro Radio switching module 2-channel 16A 2TE - 324873
PEHA Light ManagementEnOcean Easyclickpro Radio switching module 2-channel 16A 2TE - 324873
Immediately available
€56.49
Prices incl. VAT plus shipping costs net €47.47
Product information "PEHA Light ManagementEnOcean Easyclickpro Radio switching module 2-channel 16A 2TE - 324873"
2-channel module for switching lighting
The EnOccean Easyclick radio switching module from PEHA receives its telegrams via the external Easyclick antenna module and converts the set functions and parameters via its power units. The Easyclick modules are interconnected via modular plug cables.
The Easyclick switching module is used to switch lighting and other electrical loads, taking into account various functions and parameters selectable via a rotary switch.
Individually selectable function per transmitter

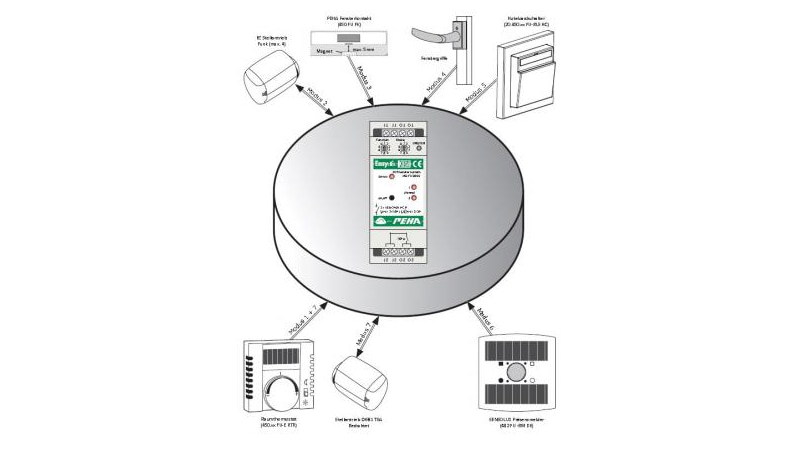

The 2 channels can be programmed independently of each other and a function can be defined individually for each taught transmitter. Standard function: 2-key function ON / OFF. Selectable functions are for example 1-key function, time functions, fan control, window contact, light scene control, hotel card switch, timed power shutdown, temperature control, etc.
The module has a consumption of approx. 0.25 W in standby and approx. 46 mA / 1.1 W during operation. The mounting takes place on a DIN rail. A 30 cm connection cable is included. The housing has IP20 protection.
Downloads & Documents
Login
Electrical data
| rated voltage: | 230-240 V |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| color: | white |
|---|---|
| interface: | EnOcean |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 4010105324877 |
|---|---|
| Length | 87 mm |
| Width | 38 mm |
| Height | 55 mm |
