Philips electronic ballast FL-ECG HF-P 218/236 TL-D III 220-240 V 50/60 Hz - 913713031666
Philips electronic ballast FL-ECG HF-P 218/236 TL-D III 220-240 V 50/60 Hz - 913713031666
Immediately available
€15.77
Prices incl. VAT plus shipping costs net €13.25
Product information "Philips electronic ballast FL-ECG HF-P 218/236 TL-D III 220-240 V 50/60 Hz - 913713031666"
The Philips HF-Performer III HF-P 218/236 TL-D III 220-240V 50/60 Hz is a 2-flame high-frequency electronic ballastwhich supports T8 lamps in the wattages of 2x 18W-36W. Two TC-L lamps with 36W can beoperated as well.
It is particularly suitable forapplications where high energy efficiency is required: The ECG has the highestpossible energy class (CELMA EEI = A2 BAT) and is therefore very low-loss. It isideally suited for the use with motion detectors.
In addition, the HF-Performer III canbe used for general lighting and accent lighting in the interior, in order tocreate a comfortable ambience. Thanks to the flicker-free warm start in under 0,5seconds you get flicker-free light. You also benefit from the SmartPowertechnology of the ECG which ensures constant light regardless of voltagefluctuations.
The HF-Performer III is suitable fordirect current operation according to IEC / EN60598-22. With 100,000 hours itoffers a long life.

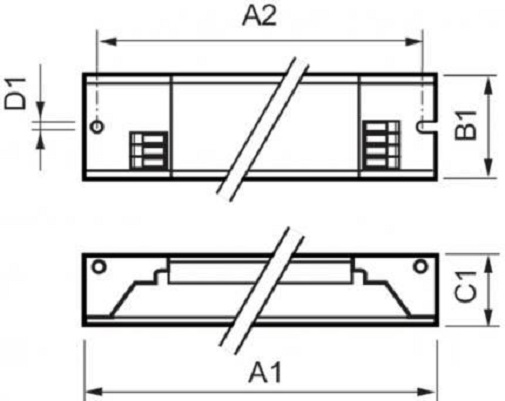

The robust housing has a compact longdesign (dimensions: 360x30x22) and is equipped with the IP20 protection.
Downloads & Documents
Login
Electrical data
| number of channels: | 2 |
|---|---|
| operating frequency: | 50-60 Hz |
| energy efficiency index: | A2 BAT |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | universal mounting |
| protection class: | III |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| lamp type: | T8 |
| sensor type: | no |
| solar panel: | no |
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 8727900911664 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 28 mm |
| Weight | 200 g |
