Philips FL-ECG HF-M RED 114 SH TL/TL5/PL-C/S 230-240V - 913700423266
Philips FL-ECG HF-M RED 114 SH TL/TL5/PL-C/S 230-240V - 913700423266
Immediately available
€14.16
Prices incl. VAT plus shipping costs net €11.90
Product information "Philips FL-ECG HF-M RED 114 SH TL/TL5/PL-C/S 230-240V - 913700423266"
The electronic ballast HF-M RED 114 SH TL / TL5 / PL-C / S 230-240V from Philips' HF MatchboxRED series for T5 and CFL lamps in a very small design opens up completely new design possibilities for lighting designers. The advantages of the FL ECGs for compact fluorescent lamps can be used in an increasing number of application areas, including light control systems.
The HF MatchboxRED has the highest energy classification Celma EEI A2. It is automatically restarted after voltage break or lamp change. Additionally, it is optimized for use in applications with frequent on/off operation.
The FL ECG provides a flicker-free warm start in under 0,8 seconds. Its servie life is 50,000 hours. More than 60,000 switch-on and switch-off operations are possible. The housing is equipped with IP20 protection.
Ideal applications of the Philips HF-MatchboxRED are interior downlighting, applications with compact fluorescent lamps up to 25 W and applications with high switching frequency.
Downloads & Documents
Login
Signify GmbH
(Lampe) Röntgenstr. 22
22335 Hamburg
DE
info@signify.com
www.signify.com
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 14 |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

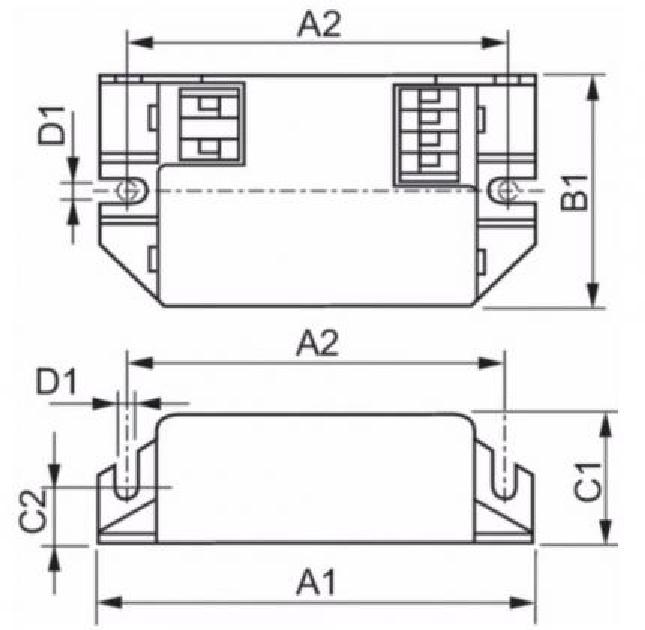

Dimensions & packaging
| EAN | 8711500931405 |
|---|---|
| Length | 80 mm |
| Width | 40 mm |
| Height | 22 mm |
