Philips FL-ECG HF-Pi 2 28/35/49/54 TL5 EII - 913700624366
Philips FL-ECG HF-Pi 2 28/35/49/54 TL5 EII - 913700624366
Immediately available
€28.61
Prices incl. VAT plus shipping costs net €24.04
Product information "Philips FL-ECG HF-Pi 2 28/35/49/54 TL5 EII - 913700624366"

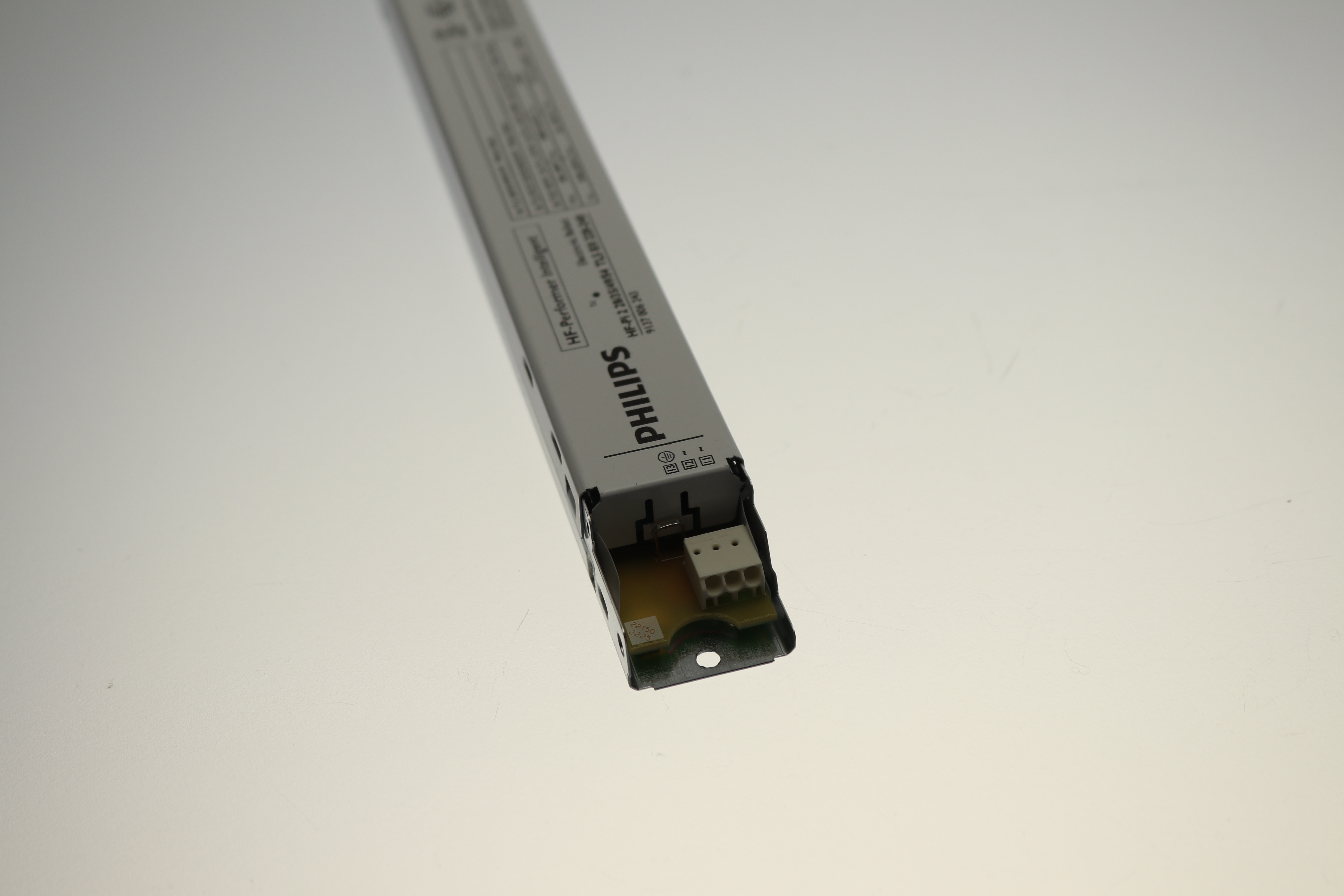

The HF-Pi 2 28/35/49/54 TL5 220-240Vfrom the High Performer EII Intelligent series from Philips is a compact,lightweight and intelligent 2-flamed electronic ballast that supports TL5lamps. Thanks to its built-in HF-performer Intelligent TD, MASTER TL5 HE- andHO-lamps of the same length can easily be replaced - so you benefit from amaximum flexibility in terms of design and use of the lamp.
Additionally, the intelligent powermanagement functions of the Philips ECG ensure a maximum system efficiencycombined with MASTER TL5, TL5c, TL-D and PL-L lamps.
The Philips ECG HF-Pi 2 28/35/49/54 TL5 220-240V has a nominal powerof 54 watts at an input voltage of 220 to 240 volts.
The white housing of the ballast isequipped with the IP20 protection.
Downloads & Documents
Login
Electrical data
| number of channels: | 2 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 28 |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 8711500915023 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 305 g |
