Philips FL-ECG HF-R 158 TL-D EII 220-240V 50/60Hz - 913700609466
Philips FL-ECG HF-R 158 TL-D EII 220-240V 50/60Hz - 913700609466
Immediately available
€39.78
Prices incl. VAT plus shipping costs net €33.43
Product information "Philips FL-ECG HF-R 158 TL-D EII 220-240V 50/60Hz - 913700609466"
The Philips HF-R 158 TL-D EII 220-240V 50/60Hz is a dimmable electronic high-frequency ballast for built-in use in T8 luminaires. It is particularly suited for applications where high efficiency and dimmability are needed. Additonally, the FL ECG can be used in areas in which the lighting creates a comfortable ambience or in which flicker-free light is required.
The Philips HF regulator can be dimmed via 1-10 V interface in a dimming range of 1-100%. Its nominal power is 58 watts.
The housing of the FL ECG is equipped with IP20 protection.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 58 |
Casing
| protection type: | IP20 |
|---|---|
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
Logistic data
| item category: | electronic ballasts |
|---|

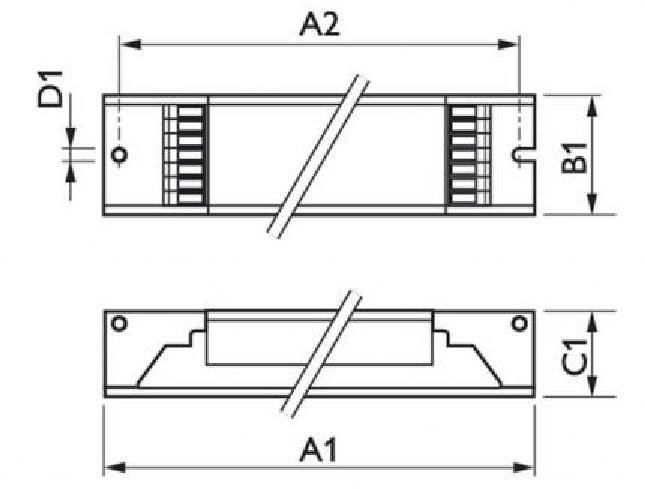

Dimensions & packaging
| EAN | 8711500910172 |
|---|---|
| Length | 360 mm |
| Width | 22 mm |
| Height | 30 mm |
| Weight | 260 g |
