Philips LED-EVG Xitanium 36W 0.12-0.4A 115V 230V - 929000950606
Philips LED-EVG Xitanium 36W 0.12-0.4A 115V 230V - 929000950606
Immediately available
€18.72
Prices incl. VAT plus shipping costs net €15.73
Product information "Philips LED-EVG Xitanium 36W 0.12-0.4A 115V 230V - 929000950606"
The Philips Xitanium 36W 0.12-0.4A115V 230V electronic ballast offers an efficient way to operate LED modules forgeneral lighting applications, such as linear lighting systems, down lighting,spotlights and accent lighting. It is, for example, ideally suited for officeapplications.
Features such as hot wiring, reducedripple current and thermal de-rating ensure the safety of the connected LEDmodule. In addition, the constant current driver has an improved surge andburst protection. The housing is equipped with IP20 protection. Its rated power is 36 watts.
Thanks to its adjustable outputcurrent, the Xitanium constant-current driver has a high flexibility inluminaire design and is compatible with the LED systems of variousmanufacturers. Application-oriented operating windows provide the necessaryflexibility to ensure a stable lumen output and high light quality.

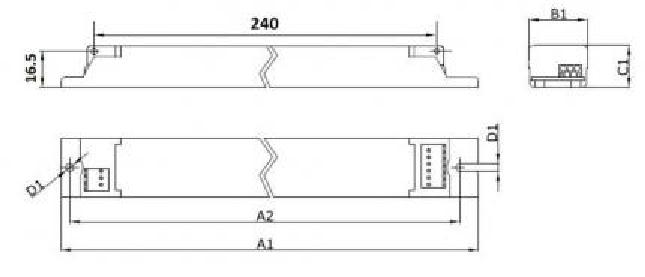

In addition, you benefit from anefficiency up to 95%, low cost and practical elongated dimensions of 280 x 30 x21 mm.
The service life is 50,000 hours. Philips offers a 5-year-warranty onthe ECG.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 8718696440001 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 180 g |
