Philips / Signify electronic ballast FL-ECG HF-P 154/155 TL5 HO PL-L III IDC - 913713028266
Philips / Signify electronic ballast FL-ECG HF-P 154/155 TL5 HO PL-L III IDC - 913713028266
Immediately available
€18.35
Prices incl. VAT plus shipping costs net €15.42
Product information "Philips / Signify electronic ballast FL-ECG HF-P 154/155 TL5 HO PL-L III IDC - 913713028266"

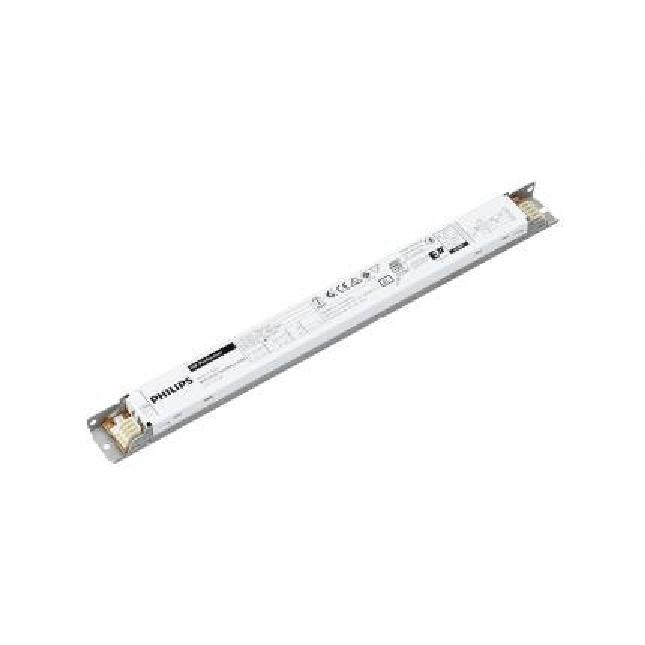

The Philips HF-Performer III ECG HF-P 154/155 TL5 HO PL-L III IDC is a 1-flame high-frequency electronic ballast which supports T5 lamps in the wattages of 50W-54W. A TC-L lamp with 55W can be operated as well.
It is particularly suitable for applications where high energy efficiency is required: The ECG has the highest possible energy class (CELMA EEI = A2 BAT) and is therefore very low-loss. It is ideally suited for the use with motion detectors.In addition, the HF-Performer III can be used for general lighting and accent lighting in the interior, in order to create a comfortable ambience.
Thanks to the flicker-free warm start in under 0,5 seconds you get flicker-free light. You also benefit from the SmartPower technology of the ECG which ensures constant light regardless of voltage fluctuations.The HF-Performer III is suitable for direct current operation according to IEC / EN60598-22. With 100,000 hours it offers a long life.

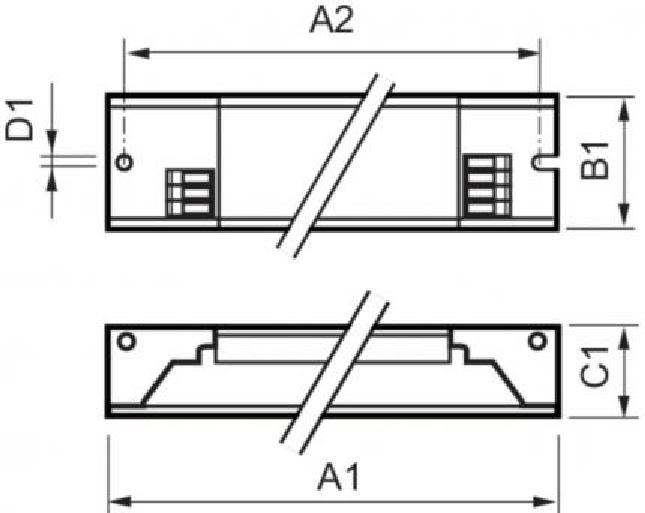

The robust housing has a compact long design (dimensions: 360x30x22) and is equipped with the IP20 protection.
Downloads & Documents
Login
Signify GmbH
(Lampe) Röntgenstr. 22
22335 Hamburg
DE
info@signify.com
www.signify.com
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 BAT |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 8711500998217 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 220 g |
