TCI ECG-LED MICRO MD 250 - 127048
Product information "TCI ECG-LED MICRO MD 250 - 127048"

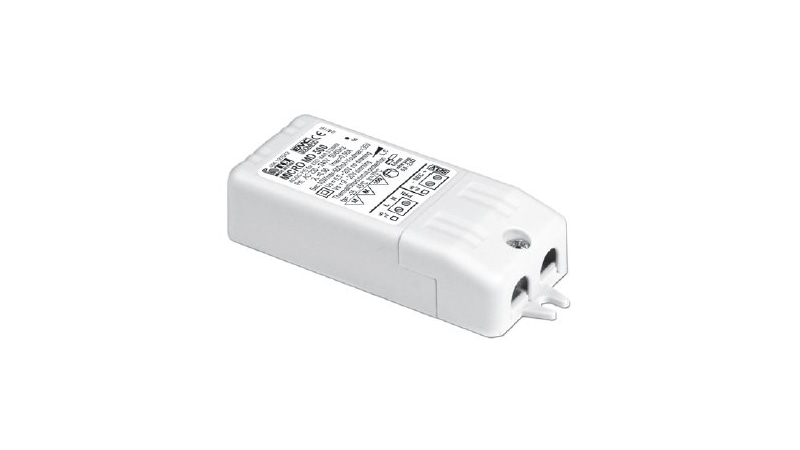

The dimmable constant current LED driver MICRO MD 250 from TCI is IP20-protected and suitable for indoor use. Its Class II protection prevents electric shocks for direct or indirect contact. Additionally, an Active Power Factor Corrector is implemented.
The LED driver is supplied with a terminal cover and a cable retainer. The input and output terminal blocks are located on the same side (wire cross-section up to 1.5 mm2 / AWG15). Clamping screws for cables with a diameter of min. 3 mm – max. 8 mm are mounted on primary and secondary circuits. The driver can be attached with screws.
The constant current LED driver MICRO MD 250 is protected against overheating and short circuits, against mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a. The control accuracy of the output current including temperature fluctuations is + - 8%.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | phase cut and gating |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

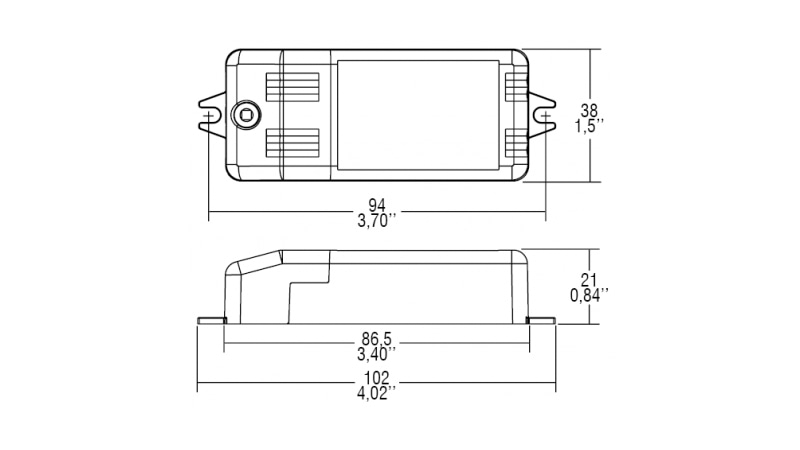

Dimensions & packaging
| EAN | 8010703317376 |
|---|---|
| Length | 38 mm |
| Width | 102 mm |
| Height | 21 mm |
| Weight | 500 g |
