TCI ECG-LED SMART 50 - 122220
Product information "TCI ECG-LED SMART 50 - 122220"

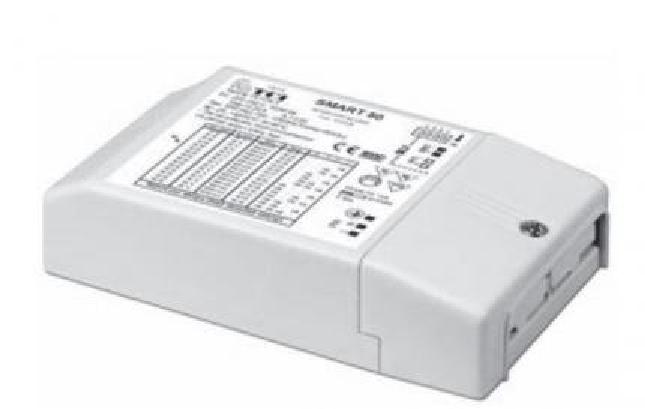

The constant current LED driver SMART 50 from TCI is IP20-protected and suitable for indoor use. Its Class I protection prevents electric shocks for direct or indirect contact. The driver has DIP switches for selecting the output current and an Active Power Corrector. An analogical input (NTC) for thermal sensor connection is inbuilt.
The input and output terminal blocks are located on the same side (wire cross-section up to 1.5mm2 / AWG15). Clamping screws for cables with a diameter of min. 2 mm – max. 9 mm are mounted on primary and secondary circuits. The driver can be attached with screws.
The constant current LED driver SMART 50 is protected against overheating and short circuits, against mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a. The control accuracy of the output current including temperature fluctuations is + - 5%.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

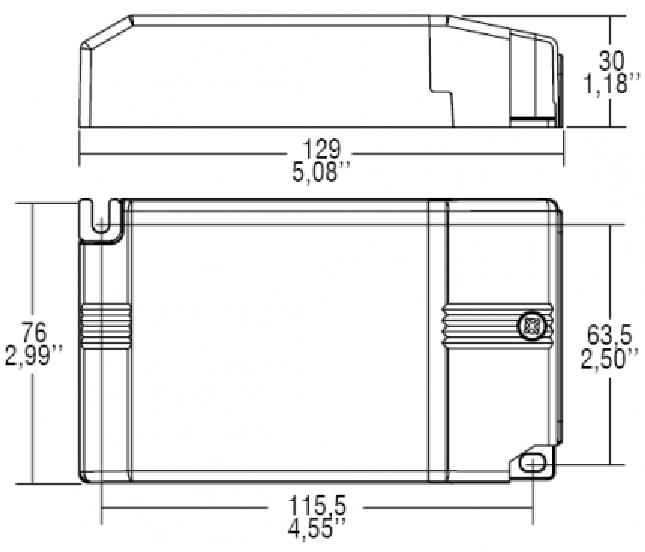

Dimensions & packaging
| EAN | 8010703309791 |
|---|---|
| Length | 76 mm |
| Width | 129 mm |
| Height | 30 mm |
| Weight | 250 g |
