TCI FL-ECG BCC 113/2 SL - 137944/13HM
Product information "TCI FL-ECG BCC 113/2 SL - 137944/13HM"
IP20 protected FL-ECG
The BCC 113/2 SL from TCI is a compact, emergency light capable, IP20 protected electronic ballast for T5/T8 and TC- lamps, suitable for independent indoor installation. The maximum power is 13 watts.
The BCC 113/2 SL has push-wire connections (conductor area 0.5 - 1.5mm2). The input and output terminals are mounted on opposite sides. The FL ECG is fastened with screws. Included in delivery are terminal covers for retaining cables measuring 2x0.75 mm2 H03VVH2-F.
Warm start technology protects the lamp
The FL ECG performs a start with pre-heating to increase the life of the lamp. It is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -15 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

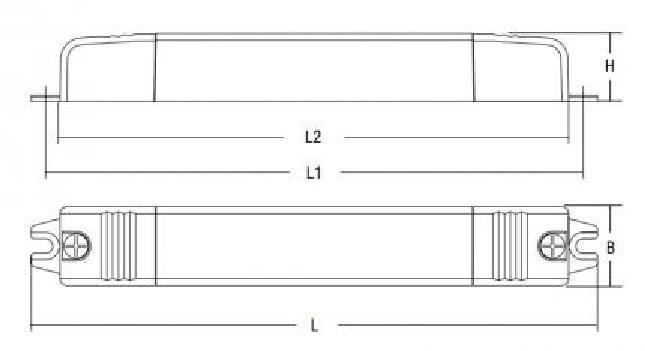

Dimensions & packaging
| EAN | 8010703100428 |
|---|---|
| Length | 158 mm |
| Width | 22 mm |
| Height | 19 mm |
| Weight | 50 g |
