TCI FL-ECG BCC 116/2 SL - 137944/16H
Product information "TCI FL-ECG BCC 116/2 SL - 137944/16H"
FL ECG for T5, T8 and TC lamps

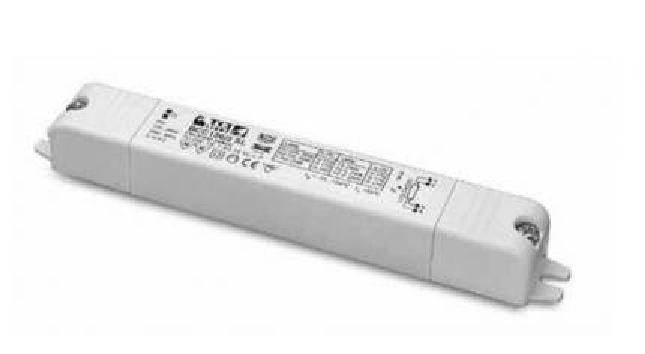

The electronic multipower ballast BCC 116/2 SL for TC5 T5, T8 and TC lamps by TCI is suitable for luminaire installation or independent mounting. It is also suitable for emergency lighting according to EN 60598-2-22. It has protection class II and IP20 protection. The rated power is 6 watts.
The input and output terminals are on opposite sides. In addition, there are plug-in terminals (conductor cross section 0.5-1.5mm2). The FL ECG is fastened with screws. Terminal covers for retaining 2x0.75 mm2 H03VVH2-F cables are included.
Start with preheating protects the lamp
To protect the lamp, a start with preheating is performed. The FL ECG is protected against, disconnection of the lamp and lamp failure. In addition, it has a protection at the end of the lamp life. EMC compliance in 0 and 60 Hz operation depends on the luminaire manufacturer.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 4 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -15 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

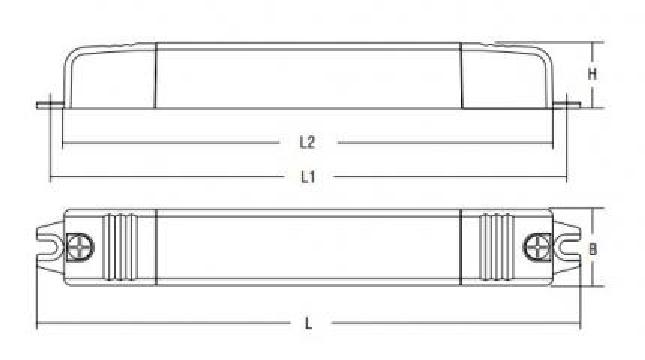

Dimensions & packaging
| EAN | 8010703100435 |
|---|---|
| Length | 150 mm |
| Width | 22 mm |
| Height | 19 mm |
