TCI FL-ECG BCC 126 - 137949HTC
Product information "TCI FL-ECG BCC 126 - 137949HTC"

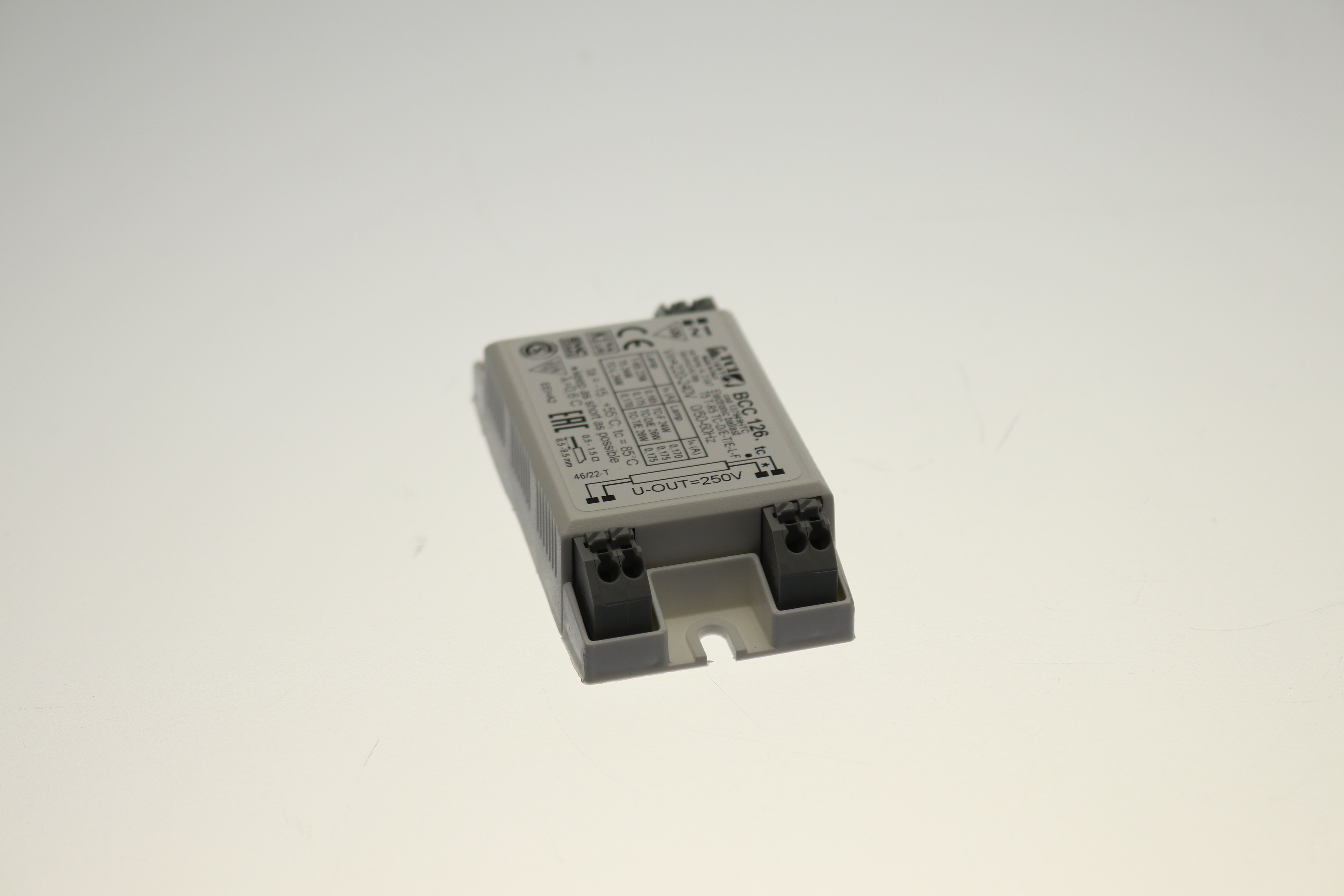

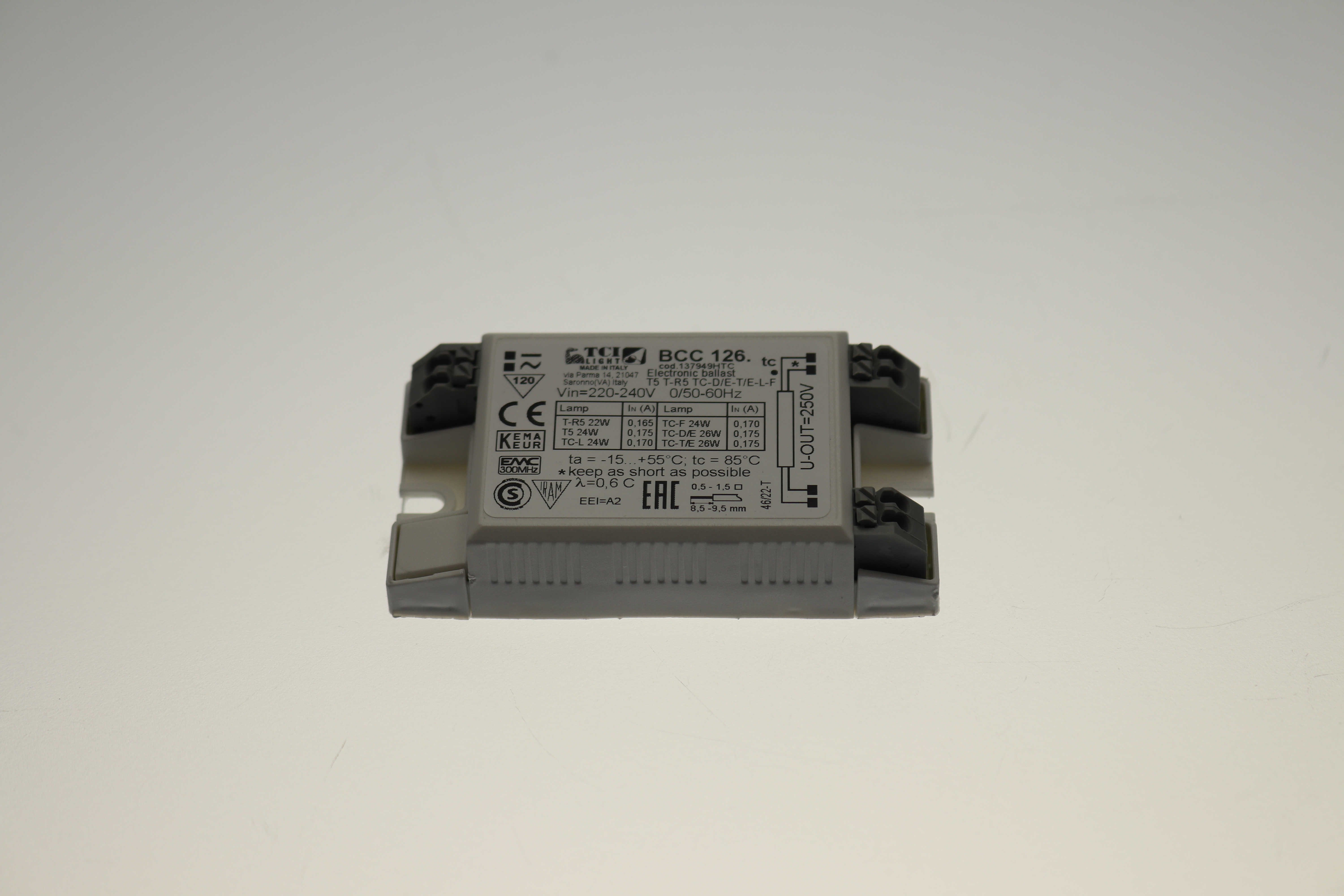

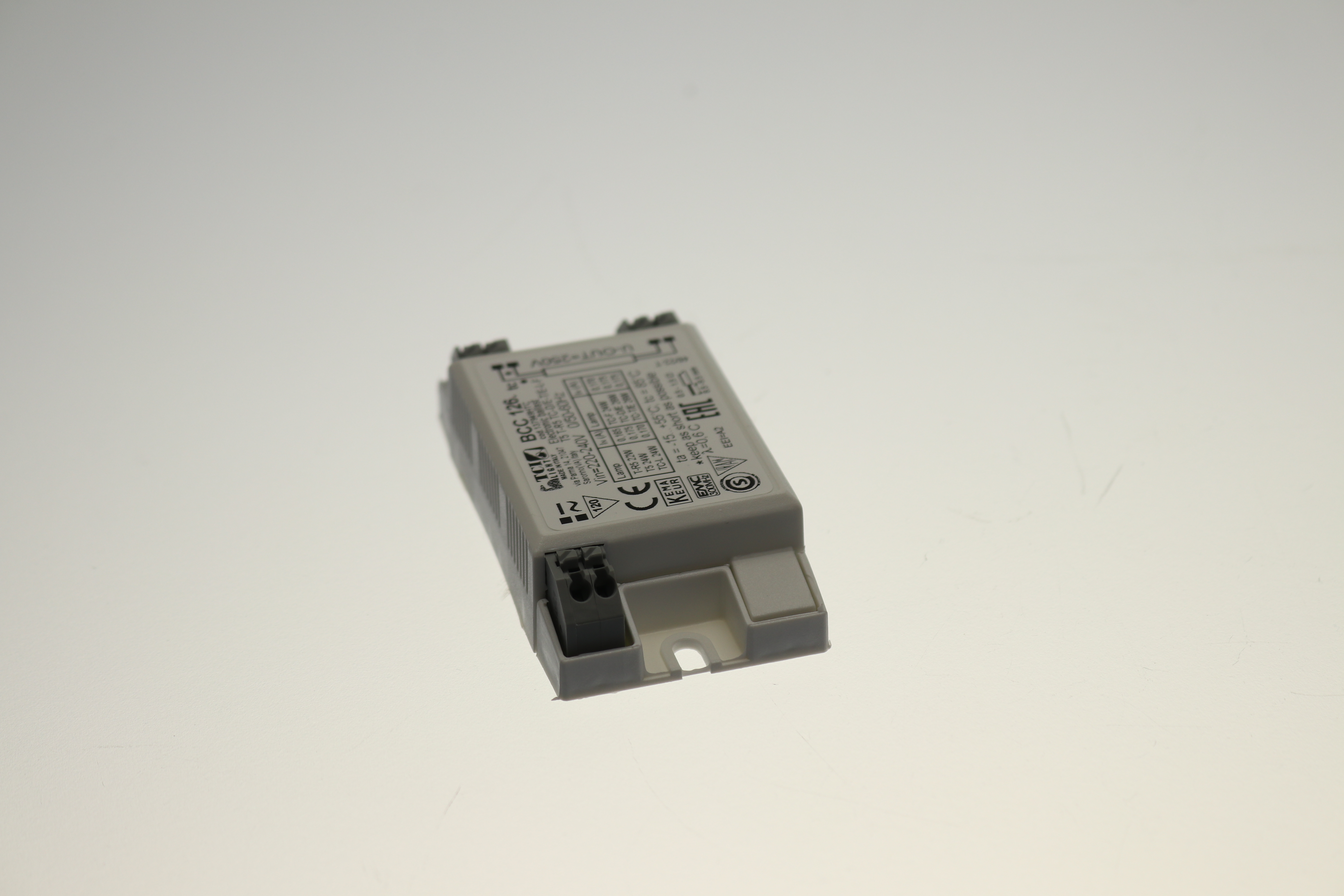

The electronic ballast FL-EVG BCC 126 from TCI is suitable for installation in T5 and CFL lamps of protection class I and II. It is also suitable for use with emergency lighting according to EN 60598-2-22.
The ECG has push wire connections. The input and output terminal blocks are on opposite sides. It can be attached with M4 screws.

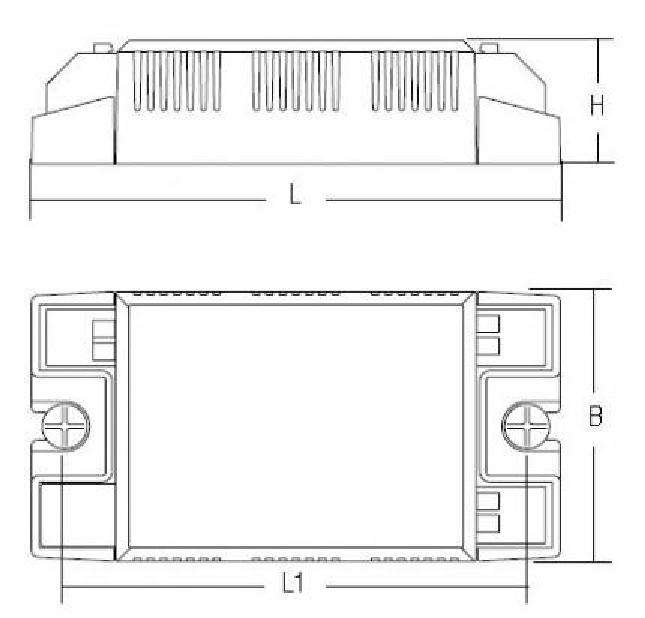

The compact housing is equipped with the IP20 protection and has the dimensions 80 x 41 x 18 mm.
To increase the life of the lamp, the TCI ECG BCC carries out a start with preheating. In addition, there is protection in case of disconnection of the lamp (restart with preheating), lamp failure and at the end of the lamp life. The EMC compliance in 0- and 60-Hz operation depends on the respective lighting manufacturer.
TCI offers 7 years warranty on the LED ECG.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -15 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 8010703100602 |
|---|---|
| Length | 80 mm |
| Width | 41 mm |
| Height | 18 mm |
