TCI FL-ECG BCC 126 SL - 137944B/26H
Product information "TCI FL-ECG BCC 126 SL - 137944B/26H"

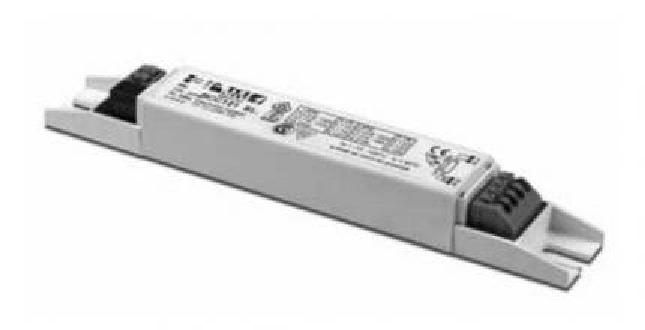

The BCC 126 SL from TCI is a compact IP20 protected electronic ballast for T5 and TC lamps, suitable for installation in luminaires of protection class I and II.
The FL-ECG is also suitable for connection to emergency equipment according to 60598-2-22. The maximum power is 26 watts. The FL-ECG performs a start with pre-heating to increase the life of the lamp.
Push-wire connections (conductor area 0.5 - 1.5 mm2). A terminal cover for retaining cables is included. The input and output terminal blocks are on opposite sides. The ballast can be secured with a slot for screws.
TheBCC 126 SL is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -15 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

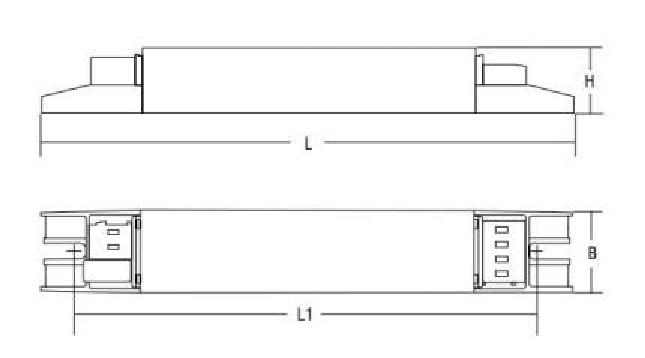

Dimensions & packaging
| EAN | 8010703101906 |
|---|---|
| Length | 150 mm |
| Width | 22 mm |
| Height | 19 mm |
