TCI FL-ECG BTLT 180 - 137999/180
Product information "TCI FL-ECG BTLT 180 - 137999/180"
FL ECG for T5, T8 and TC lamps

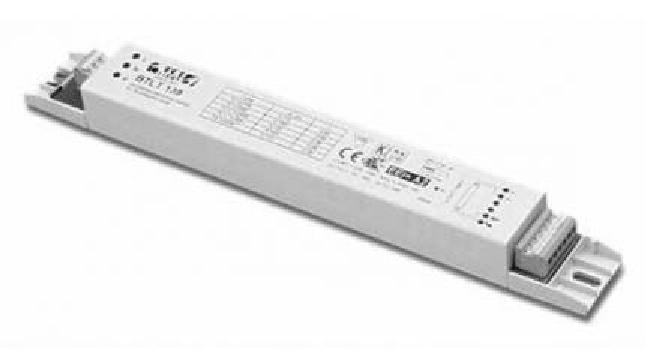

The BTLT 180 from TCI is a 1-flame, emergency light capable multilamp ECG for T5-T8 and TC compact fluorescent luminaires, suitable for independent indoor installation. It has IP20 protection The maximum power is 80 watts.
The TCI BTLT 180 has push-wire connections. The input and output terminal blocks are on opposite sides (conductor area 0.5 - 1.5 mm2). The FL ECG ist secured with a slot for screws.
Warm start technology protects the lamp
The FL ECG performs a start with pre-heating to increase the life of the lamp. It is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). Additionally, it has the high energy classification EEI = A2 and is therefore very energy efficient.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 80 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

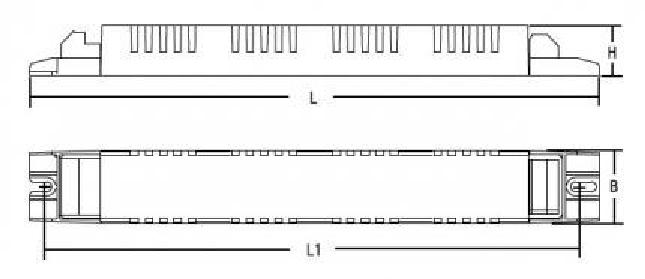

Dimensions & packaging
| EAN | 8010703101340 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 170 g |
