TCI FL-ECG BTLT 254 - 137999/54
Product information "TCI FL-ECG BTLT 254 - 137999/54"
54 W FL ECG for T5-T8 and T5 bulbs
The electronic ballast BTLT 254 for T5-T8 and TC bulbs from TCI is suitable for installation in luminaires of protection class I and II. It is also suitable for emergency lighting according to EN 60598-2-22. It has a nominal power of 54 watts.
The input and output terminals are on opposite sides (connector cross section area 0.5-1.5mm2). In addition, plug-in terminals are available. The FL ECG can be fastened with screws.
Start with preheating protects the lamp
The ballast has the energy classification EEI = A2. To protect the lamp, a start with preheating is performed.
The TCI FL ECG BTLT 254 is protected against mains voltage spikes, disconnection of the lamp and lamp failure. In addition, it has a protection at the end of the lamp life.
Downloads & Documents
Login
Electrical data
| number of channels: | 2 |
|---|---|
| rated voltage: | 220-240 V |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 85 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

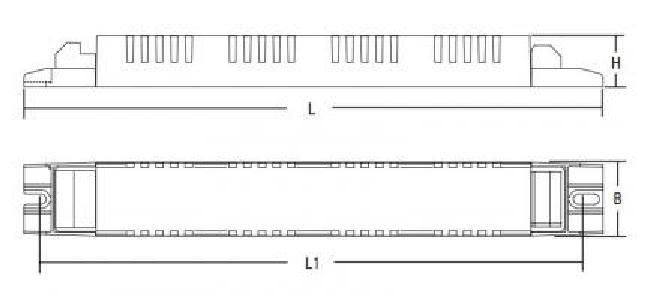

Dimensions & packaging
| EAN | 8010703101388 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
