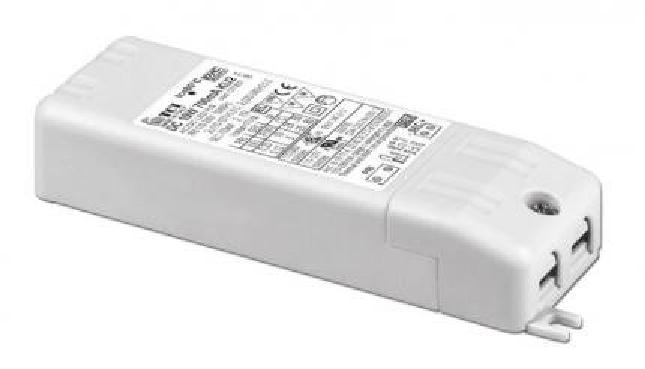

TCI LED-Driver DC 10W 700mA KU2 - 127302
Product information "TCI LED-Driver DC 10W 700mA KU2 - 127302"
The emergency current capable electronic ballast DC 10W 700mA KU2 for LED modules from TCI is equipped with IP20 protection and suitable for indoor use. It can be used for luminaire installation as well as independent mounting. Additionally, its class II protection prevents electric shocks for direct or indirect contact. The rated power is 10 W.
The constant current constant voltage LED driver is supplied with a terminal cover and a cable retainer. The input and output terminal blocks are on the same side (wire cross-section up to 0.5-2.5 mm2 / AWG20-AWG13). There is a single terminal block on primary and secondary circuit. Clamping screws for cables with a diameter of min. 3 mm – max. 6 mm are mounted on primary and secondary circuits. The driver can be attached with screws.
The TCI LED ECG DC 10W 700mA KU2 has a double output impedance for use in household electrical appliances. It is protected against overheating and short circuits, against mains voltage spikes and against overload. The current regulation is -5 + 5% including temperature variations.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 10 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

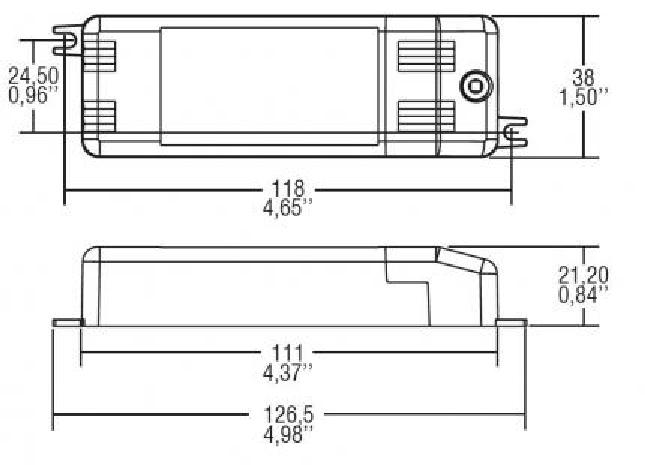

Dimensions & packaging
| EAN | 8010703309937 |
|---|---|
| Length | 38 mm |
| Width | 126 mm |
| Height | 21 mm |
| Weight | 60 g |
