TCI LED-Driver DC 75W 12V VPS LP - 127904
Product information "TCI LED-Driver DC 75W 12V VPS LP - 127904"

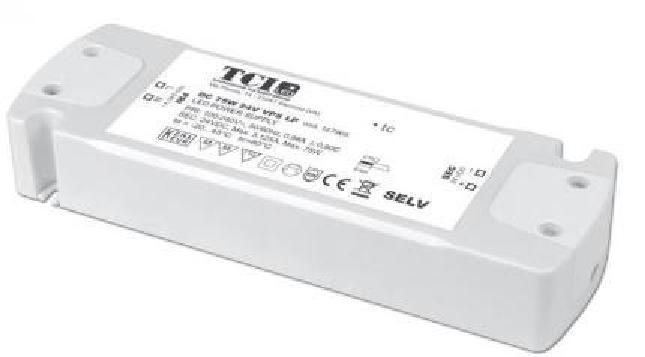

The electronic ballast DC 75W 12 V VPS LP from TCI is equipped with IP20 protection and is suitable for indoor independent installation. In addition, the 12V constant coltage LED driver is protected against electrical shock for direct and indirect contact thanks to its Class II protection. Its nominal power is 75 watts.
The input and output terminal blocks are mounted on the opposite sides. In addition, the LED ECG has a single terminal block on the primary and secondary circuits (wire cross section up to 0.5 - 0.75 mm2 / AWG20 - AWG18). The LED driver DC 75W 12V VPS LP is fastened with screws.
The TCI DC 75W 12V VPS LP is protected against overheating and short circuits, against mains voltage spikes and against overloads. The lifetime is 50,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 12 |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

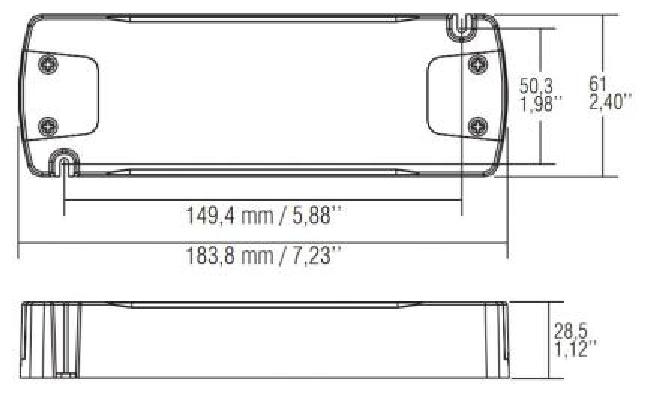

Dimensions & packaging
| EAN | 8010703324206 |
|---|---|
| Length | 61 mm |
| Width | 183 mm |
| Height | 28 mm |
| Weight | 300 g |
