TCI LED-Driver DC JOLLY US BI - 125450
Product information "TCI LED-Driver DC JOLLY US BI - 125450"

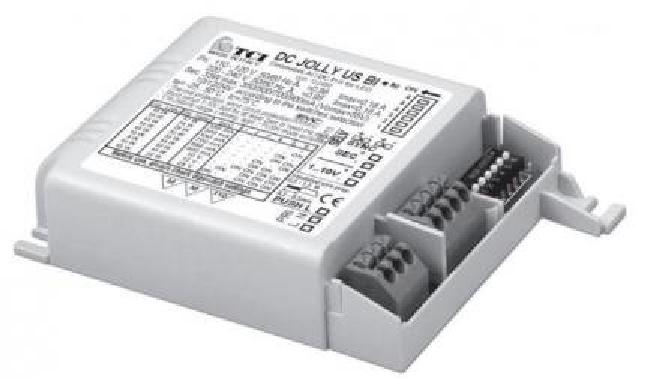

The emergency current capable dimmable constant current / constant voltage driver for LED modules DC JOLLY US BI from TCI is suitable for installation in luminaires of protection class I and II. The output current and the output voltage can be adjusted via DIP switches. The maximum system power is 32 watts.
An Active Power Factor Corrector is integrated. Dimming is possible via 1-10V or PushDIM.
The input and output terminal blocks are mounted on the same side (wire cross-section up to 1.5 mm2 / AWG15).
The TCI DC JOLLY US BI is protected against overheating and short circuits, mains voltage spikes and overload. It also has a thermal protection according to EN 61347 C.5.a. The current control is + - 5% including temperature fluctuations.
TCI offers a 10-year-warranty on the LED ECG.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 13 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

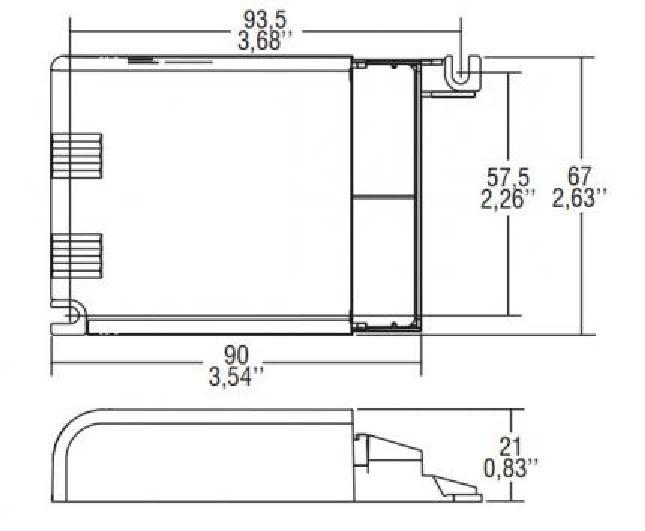

Dimensions & packaging
| EAN | 8010703324398 |
|---|---|
| Length | 67 mm |
| Width | 90 mm |
| Height | 21 mm |
| Weight | 110 g |
