TCI LED-Driver DC MAXI JOLLY HBI - 127052
Product information "TCI LED-Driver DC MAXI JOLLY HBI - 127052"

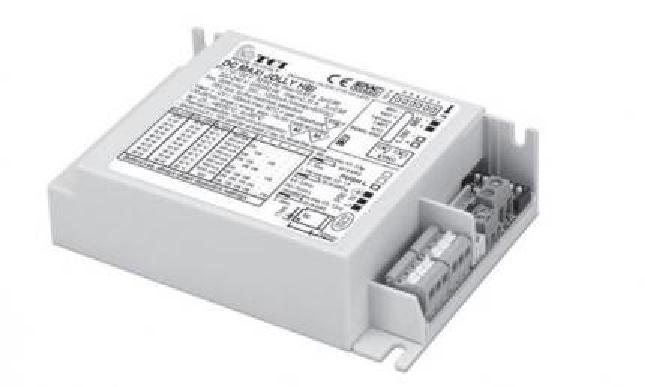

The DC MAXI JOLLY HBI from TCI is an emergency current capable, dimmable constant current LED driver for installation in luminaires of protection class I. Its nominal power is 65 W. The LED ECG is equipped with IP20 protection and suitable for indoor use.
DIP-switches on the driver allow an adjustion of the output current. An active power factor corrector is integrated as well.
The driver has a 12 V auxiliary output for a maximum of 100 mA and an analogical input for a thermal sensor. Dimming is possible via 1-10V or PushDIM.
The input and output terminal blocks are on the same side (wire cross-section up to 1.5-2.5 mm2 / AWG15-AWG13).
The TCI DC MAXI JOLLY HBI is protected against overheating and short circuits, mains voltage spikes and overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5.a. The control accuracy of the output current including temperature fluctuations is + - 5%.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 25 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

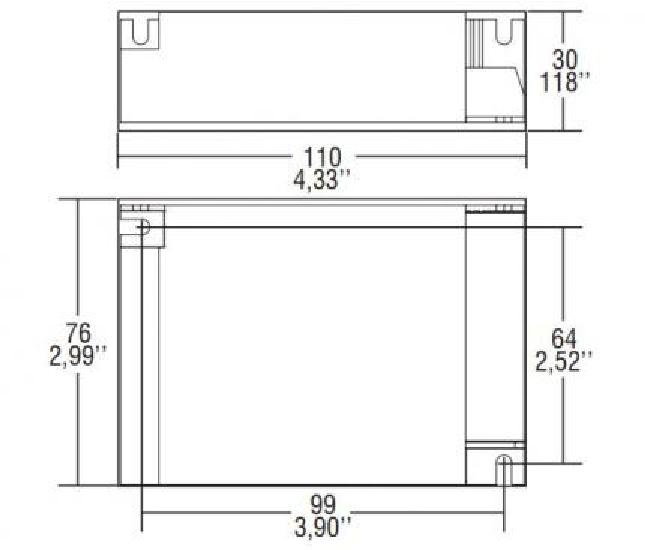

Dimensions & packaging
| EAN | 8010703310513 |
|---|---|
| Length | 76 mm |
| Width | 110 mm |
| Height | 30 mm |
