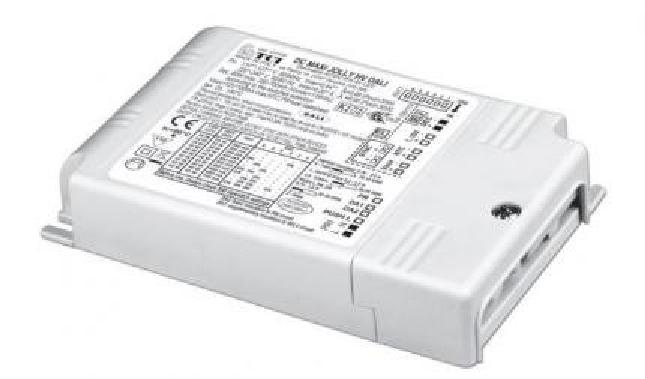

TCI LED-Driver DC MAXI JOLLY HV DALI - 151409
Product information "TCI LED-Driver DC MAXI JOLLY HV DALI - 151409"
28W constant current LED driver
The dimmable constant current / constant voltage LED driver DC MAXI JOLLY HV DALI by TCI is suitable for luminaire installation or independent mounting. Its protection class II prevents electric shocks in direct or indirect contact. It also has IP20 protection and is suitable for indoor use. The rated power is up to 28 watts.
The input and output terminals are located on the same side (wire cross-section up to 2.5 mm2 / AWG13). Clamping screws for cables with a minimum diameter of 3 mm to a maximum of 8 mm are mounted on the primary and secondary circuits.
Dimmable via 0 / 1-10V, DALI or PushDIM
The LED driver is dimmed via its 0 / 1-10V interface, via DALI or via PushDIM in a range of 0-100%.
The LED ECG has DIP switches for adjusting the output current and an Active Power Factor Corrector. Additionally, it has an analogical input (NTC) for thermal sensor connection and a 12V auxiliary output for max. 100 mA. The current regulation including temperature fluctuations is + - 5%.
The TCI DC MAXI JOLLY HV DALI is protected against overheating and short circuits, mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 28 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

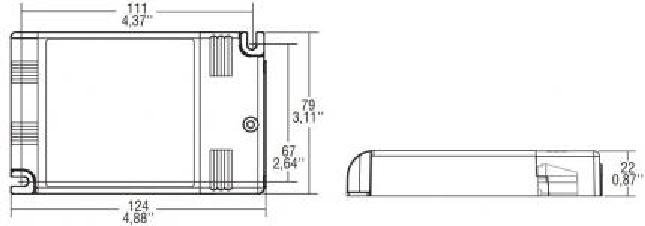

Dimensions & packaging
| EAN | 8010703329058 |
|---|---|
| Length | 79 mm |
| Width | 124 mm |
| Height | 22 mm |
