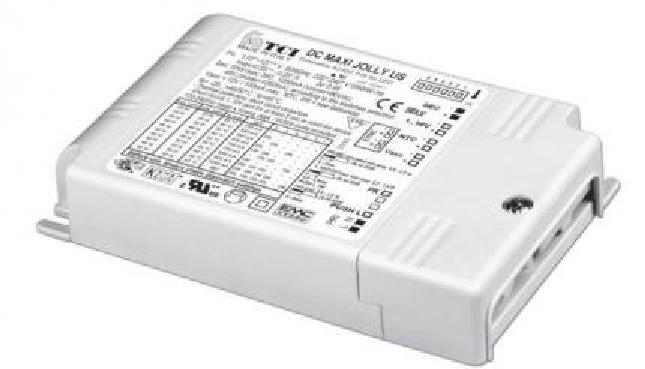

TCI LED-Driver DC MAXI JOLLY US 127411
Product information "TCI LED-Driver DC MAXI JOLLY US 127411"
The dimmable electronicballast for LED modules DC MAXI JOLLY US from TCI is for independent mountingindoors. The housing of the LED ECG is IP20 protected. In addition, its equipment with protection class I prevents electricshocks for direct or indirect contact.
An active power corrector is integrated.Moreover, the constant current LED driver has a 12 V auxiliary output for max.100 mA as well as an analogical input for a thermal sensor.
With the help of a dip switch,the constant current can be adjusted. The current control is + - 5% includingtemperature fluctuations.
Dimming is possible via a PushDIMinterface or a 1-10 V interface in dimming range from 0-100%.
The input and output terminalblocks are on the same side (wire cross-section up to 2.5 mm2 / AWG13). The clampingscrews on primary and secondary circuits for cables have a minimum diameter of3 mm up to a maximum of 8 mm.
The TCI DC MAXI JOLLY US isprotected against overheating and short circuits, mains voltage spikes andoverload. In addition, it has an automatic resetting thermal protectionaccording to EN 61347 C.5. a.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| setting type: | DIP-switch |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

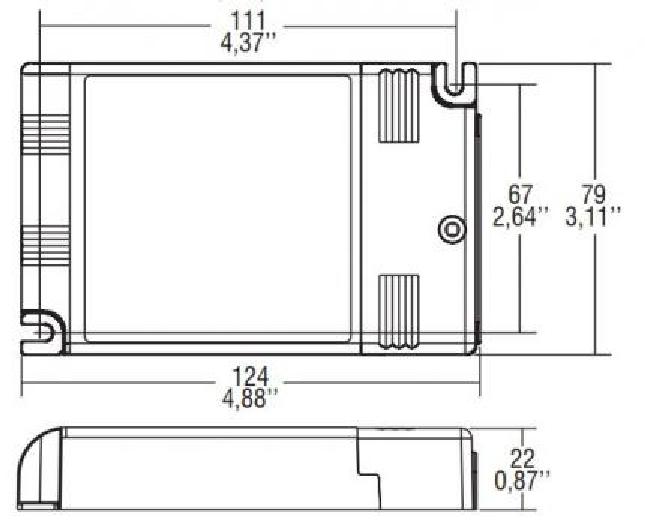

Dimensions & packaging
| EAN | 8010703322943 |
|---|---|
| Length | 80 mm |
| Width | 124 mm |
| Height | 22 mm |
| Weight | 200 g |
