TCI LED-Driver DC MICRO JOLLY 6W 350mA - 122426
Product information "TCI LED-Driver DC MICRO JOLLY 6W 350mA - 122426"

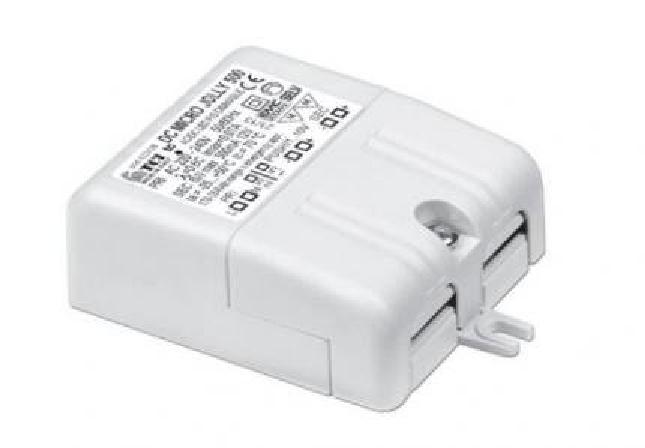

The emergency current capable, dimmable electronic ballast DC MICRO JOLLY 6W 350mA from TCI is equipped with IP20 protection and is suitable for luminaire installation as well as independent mounting indoors. It is also equipped with protection class II and is thus protected against electric shock with direct or indirect contact. Its rated power is 6 watts.
Dimming is possible via a 0-10 V or PushDIM in a range of 0% to 100%.
The constant current constant voltage LED driver is supplied with a terminal cover and a cable retainer. Clamping screws for cables with a minimum diameter of 3 mm up to a maximum of 8 mm are mounted on primary and secondary circuits.
The input and output terminal blocks are on the same side and have a wire cross-section of up to 2.5 / AWG 13 (primary circuit), 1.5 mm2 / AWG15 (secondary circuit) and 1.5 mm2 / AWG15 (regulation).

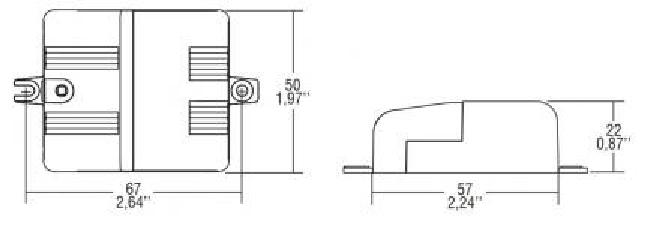

With dimensions of 57 x 50 x 22 mm, the LED ECG has an extremely small size.
The DC MICRO JOLLY 6W 350mA is protected against overheating and short circuits, mains voltage spikes and overload. It also has a automatic resetting thermal protection acc. to EN 61347 C.5. a. The current control is + - 5% including temperature fluctuations.
TCI offers a 10-year-warranty on the LED ECG.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 8010703300446 |
|---|---|
| Length | 50 mm |
| Width | 67 mm |
| Height | 22 mm |
| Weight | 40 g |
