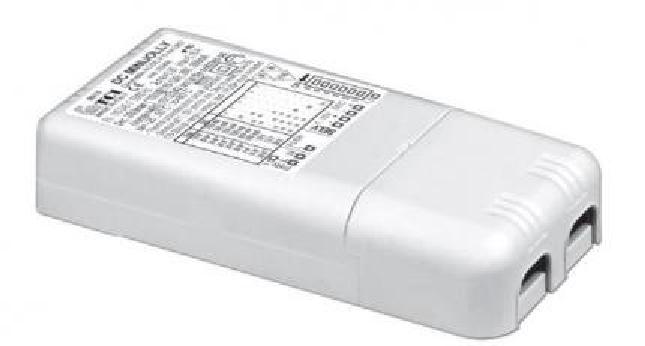

TCI LED-Driver DC MINIJOLLY LC - 151401
Product information "TCI LED-Driver DC MINIJOLLY LC - 151401"
The emergency current capable dimmable electronic ballast DC MINIJOLLY LC from TCI is equipped with IP20 protection and is suitable for the luminaire installation or independent mounting indoors. It also has protection class II and is thus protected against electric shock with direct or indirect contact. Its rated power is up to 20 watts.
The constant current constant voltage LED driver has DIP switches for adjusting the output current. An active power factor corrector and is integrated as well.
Dimming is possible via a 1-10V or PushDIM in a range of 0% to 100%.
The input and output terminal blocks are (wire cross-section up to 1.5 mm2 / AWG15). Clamping screws for cables with a diameter of min. 5 mm up to a max. of 8 mm (primary circuit) respective min. 3 up to max. of 5 mm (secondary circuit) are mounted on primary and secondary circuits.
The LED ECG DC MINIJOLLY LC is protected against overheating and short circuits, mains voltage spikes and overload. It also has a automatic resetting thermal protection acc. to EN 61347 C.5. a. The current control is + - 5% including temperature fluctuations.
TCI provides 10 years warranty on the LED driver.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

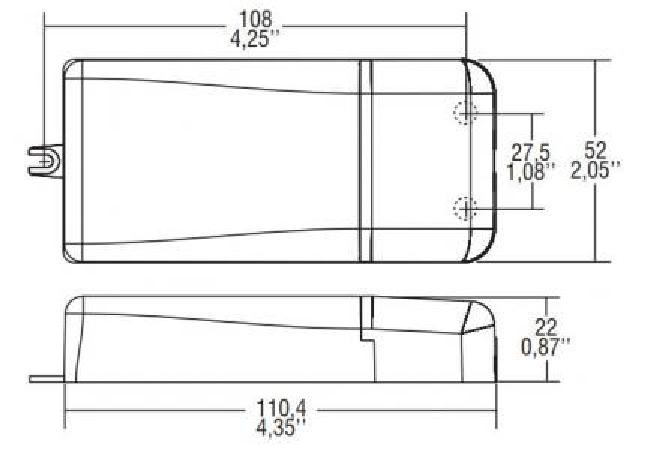

Dimensions & packaging
| EAN | 8010703334151 |
|---|---|
| Length | 52 mm |
| Width | 111 mm |
| Height | 22 mm |
| Weight | 100 g |
