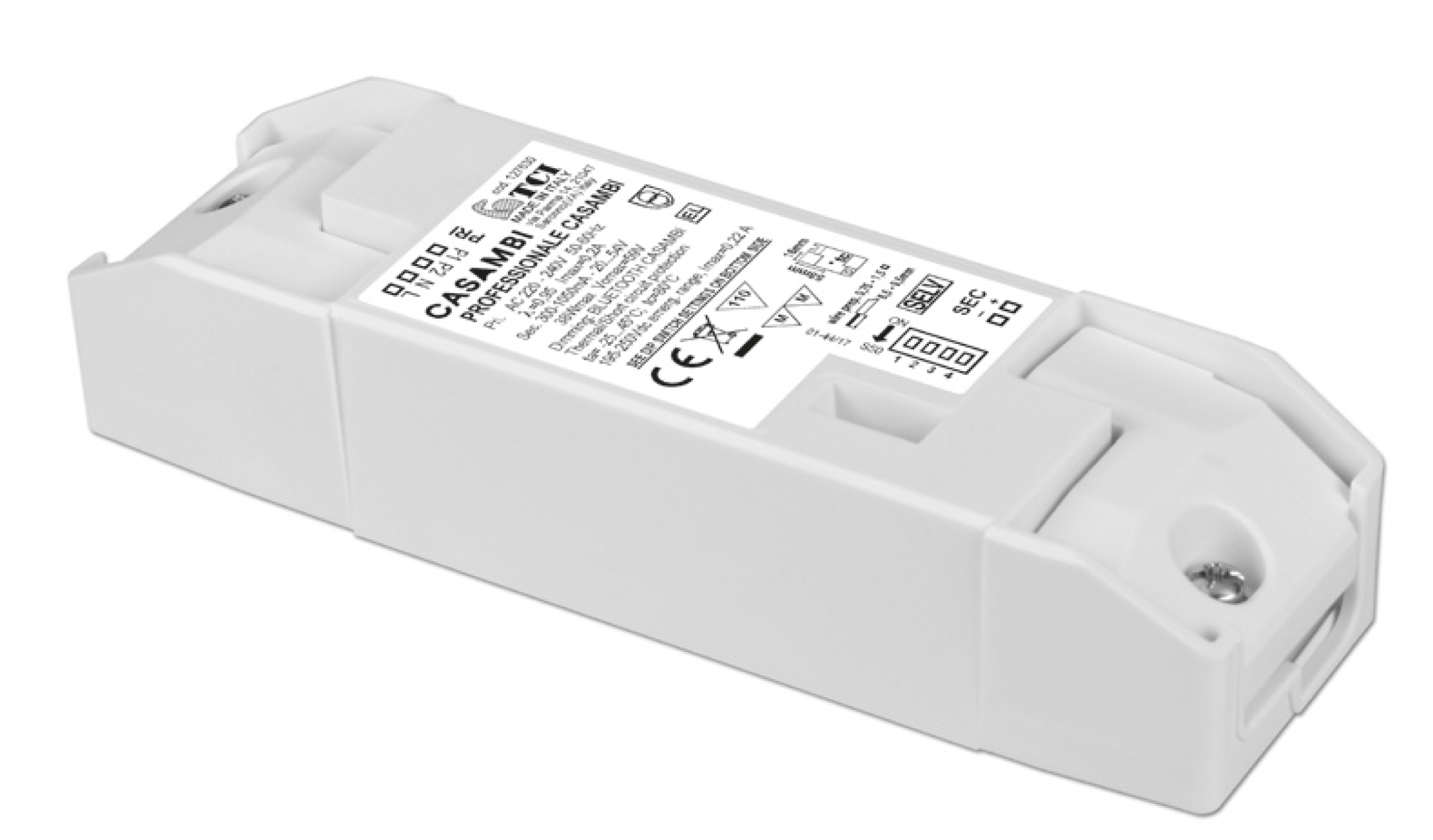

TCI LED driver dimmable PROFESSIONALE HC CASAMBI – 127660
Product information "TCI LED driver dimmable PROFESSIONALE HC CASAMBI – 127660"

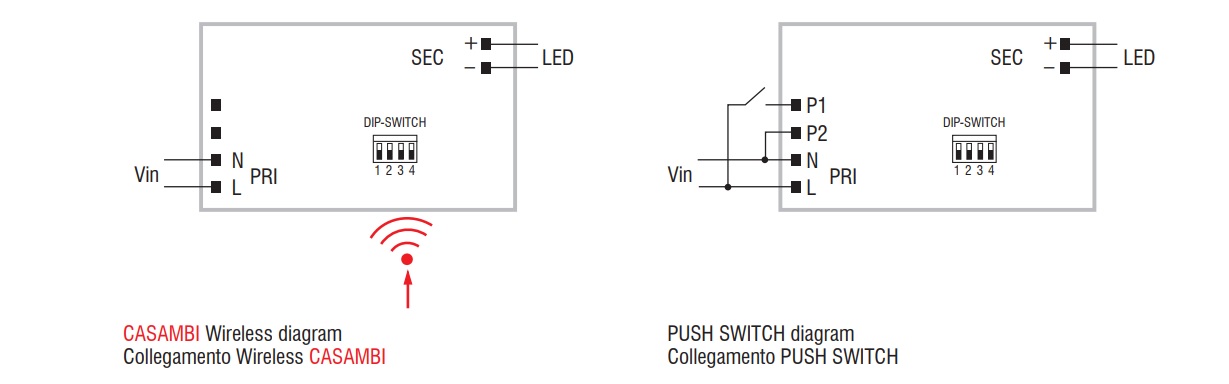

- Multipower driver supplied with DIP-SWITCH for the selection of the output current with integrated wireless CASAMBI receiver
- IP20 independent driver, for indoor use (PROFESSIONALE HC CASAMBI)
- Class II protection against electric shock for direct or indirect contact (PROFESSIONALE HC CASAMBI)
- Driver for built-in use (PROFESSIONALE HC CASAMBI BI)
- It can be used for lighting equipment in protection class I and II (PROFESSIONALE HC CASAMBI BI)
- Active Power Factor Corrector
- Current regulation ±5 % including temperature variations.
- Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm² / AWG15)
- Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PROFESSIONALE HC CASAMBI)
- Driver can be secured with slot for screws
- Protections
- against overheating and short circuits
- against mains voltage spikes
- against overloads - Thermal protection = C.5.a.
Downloads & Documents
Login
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| terminal type: | plug-in terminal |
| conformity: | CB, ENEC |
Casing
| fire protection: | no |
|---|---|
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| dimming range from: | 1 % |
| color: | grey |
| lamp type: | LED |
| sensor type: | no |

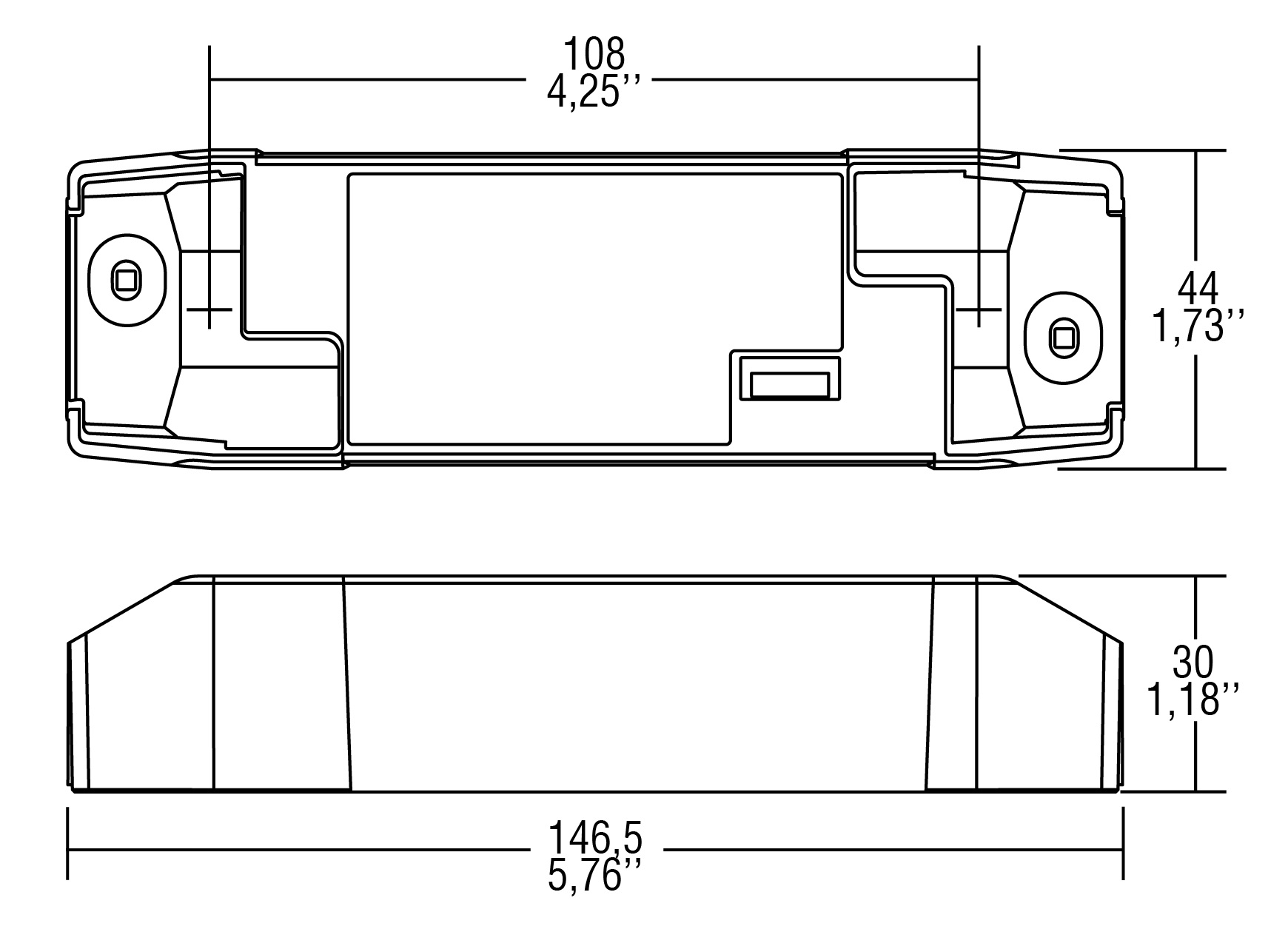

Dimensions & packaging
| Length | 146 mm |
|---|---|
| Width | 44 mm |
| Height | 30 mm |
| Weight | 200 g |
