TCI LED-Driver JOLLY DIN - 127100
Product information "TCI LED-Driver JOLLY DIN - 127100"

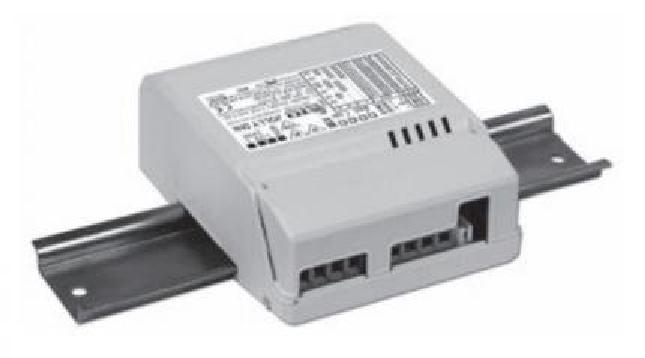

The constant current driver for 4 LED modules JOLLY DIN from TCI is suitable for DIN Rail installations. The output current can be adjusted via DIP switches. The maximum system power is 32 watts.
The LED driver has an Active Power Factor Corrector.
Dimming is possible via 1-10V/PushDIM.
The input and output terminal blocks are mounted on the same side : max wire cross-section at the input up to 4 mm2 / AWG11 ; at the output 2.5 mm2 / AWG13). The LED ECG can be secured with a slot for screws.
The TCI JOLLY DIN is protected against overheating and short circuits, mains voltage spikes and overload. It also has a thermal protection according to EN 61347 C.5.a. The current control is + - 5% including temperature fluctuations. The lifetime is 50,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

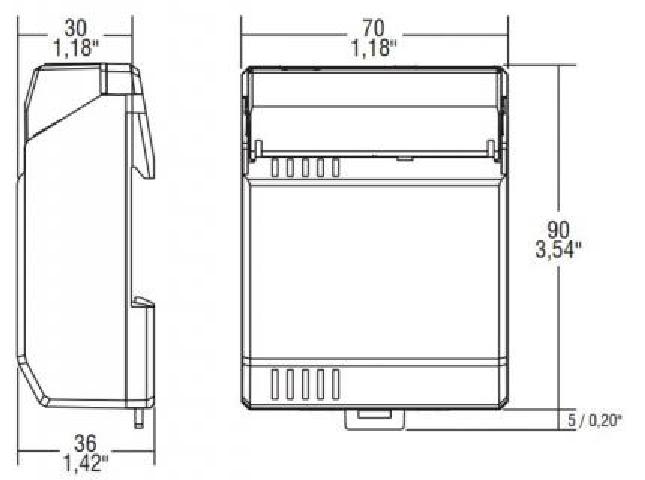

Dimensions & packaging
| EAN | 8010703310810 |
|---|---|
| Length | 70 mm |
| Width | 90 mm |
| Height | 36 mm |
| Weight | 140 g |
