TCI LED-Driver MP 80/500 SLIM - 122214I
Product information "TCI LED-Driver MP 80/500 SLIM - 122214I"
The DC capable constant current driver for LED modules MP 80/500 SLIM from TCI is suitable for installation in luminaires of protection class I and II. The output current can be adjusted via DIP switches. The maximum system power is 80 watts.
The LED driver has an Active Power Factor Corrector.
The input and output terminal blocks are mounted on the opposite sides (wire cross-section up to 1.5 mm2 / AWG 15). The LED ECG can be secured with a slot for screws.
The MP 80/500 SLIM is protected against overheating and short circuits, mains voltage spikes and overload. It also has a thermal protection according to EN 61347 C.5.a. The current control is + - 5% including temperature fluctuations.
The housing of the LED ECG has an elongated design and is IP20 protected.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

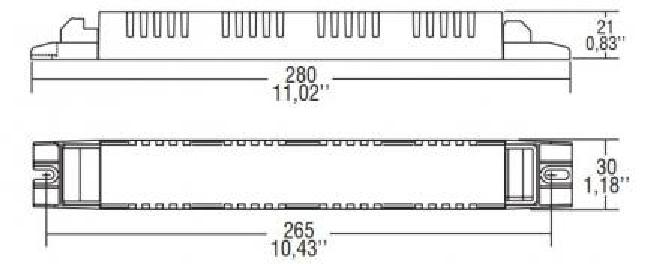

Dimensions & packaging
| EAN | 8010703332201 |
|---|---|
| Length | 30 mm |
| Width | 280 mm |
| Height | 21 mm |
| Weight | 150 g |
