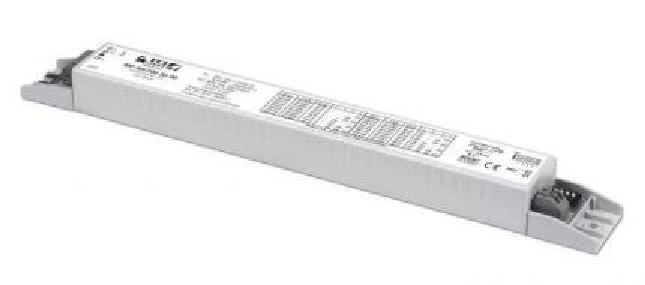

TCI LED-Driver MP 80/700 SLIM - 122213
Product information "TCI LED-Driver MP 80/700 SLIM - 122213"
80W constant current LED ECG for built-in use
TCI's IP20-protected constant current LED driver MP 80/700 SLIM is suitable for installation in luminaires of protection class II. It has a rated output of up to 80 watts.
The input and output terminals are on the opposite sides (wire cross-section up to 1.5 mm2 / AWG15). The output is not isolated from the input. The LED ECG can be secured with a slot for screws.
Output current adjustable via DIP switches
The TCI LED ECG has DIP switches for adjusting the output current and an Active Power Factor Corrector. The current regulation including temperature fluctuations is + - 5%.
The constant current LED driver MP 80/700 SLIM is protected against overheating and short circuits, mains voltage spikes and overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

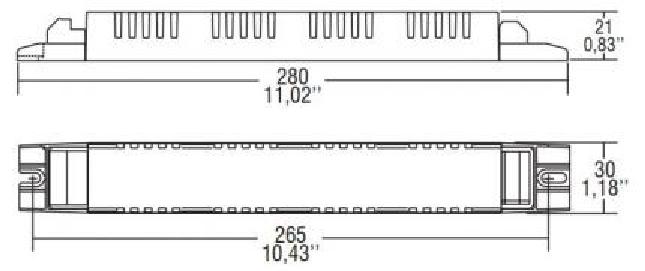

Dimensions & packaging
| EAN | 8010703309470 |
|---|---|
| Length | 30 mm |
| Width | 280 mm |
| Height | 21 mm |
