TCI LED-Driver PROFESSIONALE DALI BI - 127492
Product information "TCI LED-Driver PROFESSIONALE DALI BI - 127492"

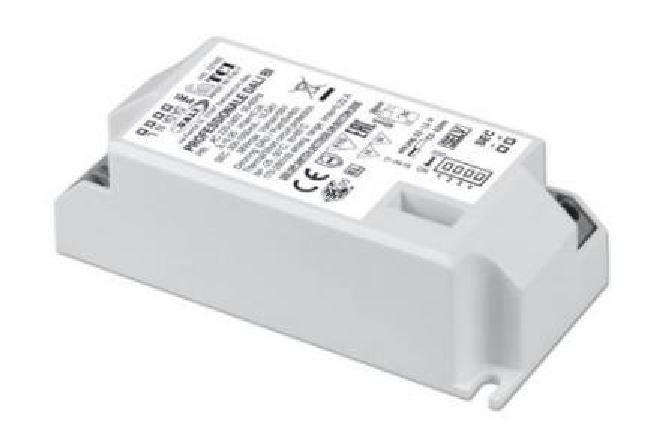

38W DALI2 constant current LED driver
The dimmable constant current LED driver PROFESSIONALE DALI BI by TCI is suitable for installation in luminaires of protection class I and II. It also has IP20 protection and is suitable for indoor use. The rated power is up to 38 watts.
It is secured with a slot for screws. The input and output terminals are located on opposite sides (wire cross-section up to 1.5 mm2 / AWG15).
Output current adjustable via DIP switches
The TCI LED ECG has DIP switches for adjusting the output current and an Active Power Factor Corrector. The current regulation including temperature fluctuations is + - 5%. The LED ECG ist dimmable via DALI2, PushDIM or switch DIM.
The LED driver PROFESSIONALE DALI BI is protected against overheating and short circuits, mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5.a.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | switchDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

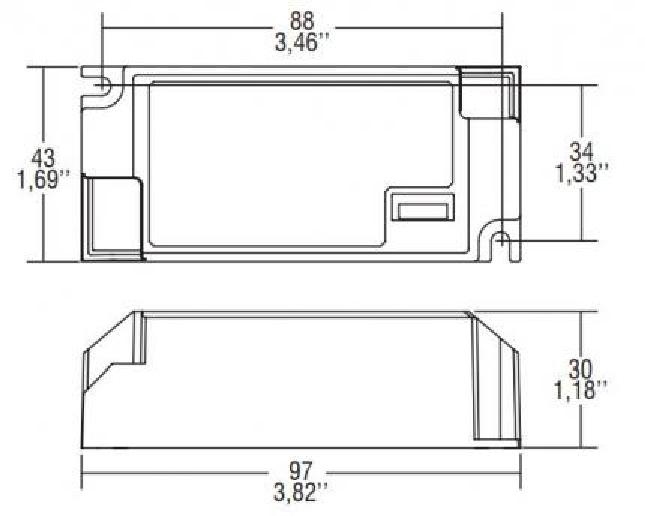

Dimensions & packaging
| EAN | 8010703330450 |
|---|---|
| Length | 43 mm |
| Width | 97 mm |
| Height | 30 mm |
