TCI LED-Driver SIRIO 120/1000-2100 1-10V BILEVEL BI - 127352
Product information "TCI LED-Driver SIRIO 120/1000-2100 1-10V BILEVEL BI - 127352"
1-10V dimmable 120W LED driver
The IP20-protected, dimmable constant current LED driver SIRIO 120 / 1000-2100 1-10V BILEVEL BI from TCI is suitable for installation in luminaires of protection class I and II. It has a nominal output of up to 120 watts.
The input and output terminal blocks are located on opposite sides (wire cross section 1.5 - 2.5 mm2 / AWG15 - AWG13).
Output current adjustable via DIP switches
The LED ECG has an Active Power Corrector and analogical input for thermal sensor connection. The output current can be adjusted via DIP switches. The LED driver is dimmed via 1-10V.
The TCI constant current LED ECG SIRIO 120 / 1000-2100 1-10V BILEVEL BI is protected against overheating and short circuits, mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5.a.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 58 |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| mounting: | surface mounting |
| environment temperature from: | -40 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| color: | white |
| interface: | 1-10 V |
Logistic data
| item category: | LED drivers |
|---|

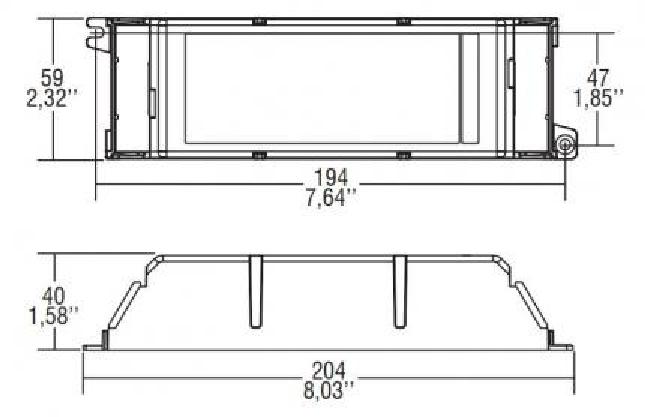

Dimensions & packaging
| EAN | 8010703330788 |
|---|---|
| Length | 204 mm |
| Width | 59 mm |
| Height | 40 mm |
