TCI LED-Treiber DC 50W 48V VST BI - 122780
Product information "TCI LED-Treiber DC 50W 48V VST BI - 122780"
50W constant voltage LED ECG for built-in use
The constant voltage LED driver DC 50W 48V VST BI from TCI is suitable for installation in luminaires of protection class I. It has a nominal output of up to 50 watts.
The input and output terminal blocks are on opposite sides. In addition, the LED ECG has a single terminal block on the primary circuit (conductor cross-section up to 0.5-2.5mm2 / AWG20-AWG13) and a double terminal block on the secondary circuit (conductor cross-section up to 0.5-2.5mm2 / AWG20-AWG13)
Overheating/short circuit/overload protection
The TCI DC 50W 48V VST BI LED driver is protected against overheating, short circuits, mains voltage spikes and overload.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 52 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| system power: | 50 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -40 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

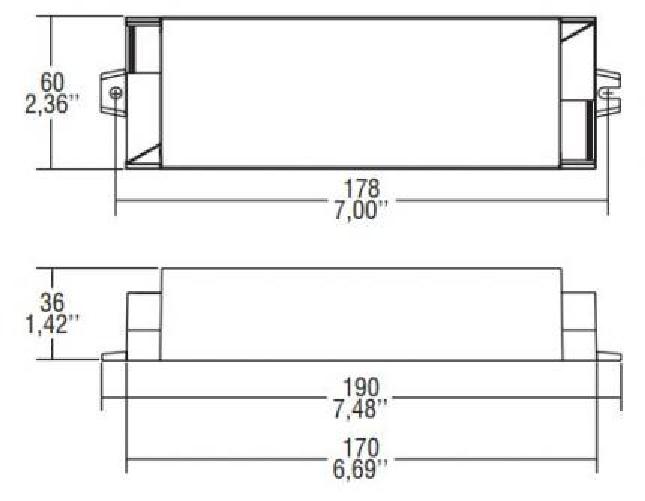

Dimensions & packaging
| EAN | 8010703301580 |
|---|---|
| Length | 60 mm |
| Width | 190 mm |
| Height | 36 mm |
| Weight | 250 g |
