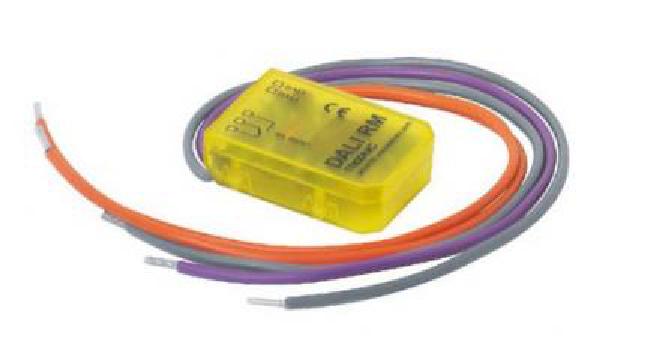

Tridonic DALI relay output TRIDONIC DALI-RM - 24034702
Tridonic DALI relay output TRIDONIC DALI-RM - 24034702
Shipping in 28 day(s)
€126.46
Prices incl. VAT plus shipping costs net €106.27
Product information "Tridonic DALI relay output TRIDONIC DALI-RM - 24034702"
Very important !!!
Because DALI-RM is not designed to switch electrical loads.
The maximum load is a contactor coil / power relay coil.
DALI-RM supplies itself with approx. 12mA from the DALI line.
The max. Power on a DALI line must not exceed 250mA.
Please check the datasheet of the DALI power supply or the DALI gateway
Downloads & Documents
Login
Electrical data
| through wiring: | no |
|---|
Casing
| ballproof: | no |
|---|---|
| protection type: | IP20 |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|
Logistic data
| item category: | light management |
|---|

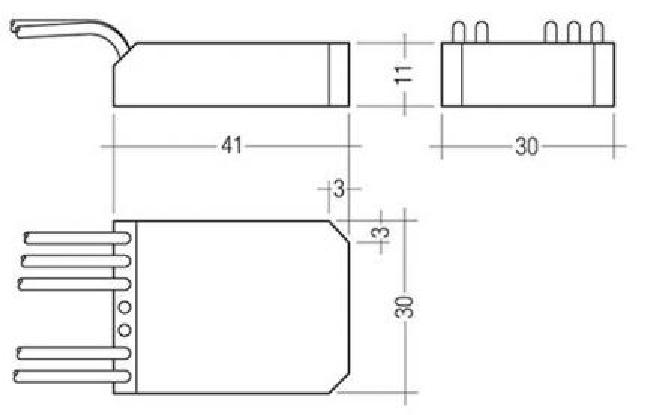

Dimensions & packaging
| EAN | 9006210177809 |
|---|---|
| Length | 41 mm |
| Width | 30 mm |
| Height | 11 mm |
| Weight | 87 g |
