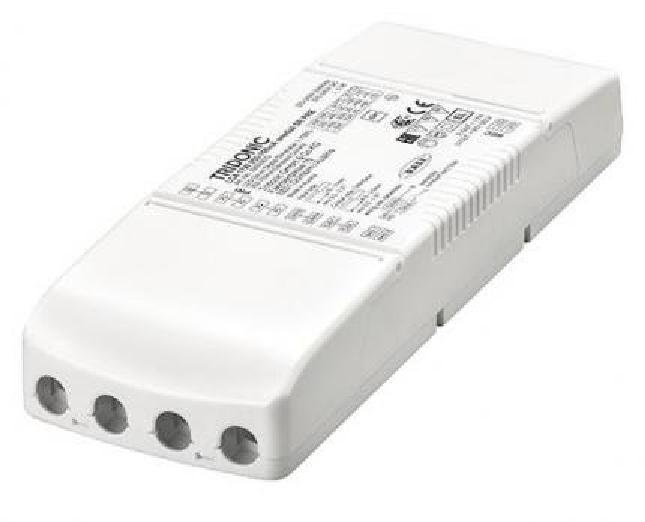

Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE - 28000670
Tridonic GmbH & Co KG
Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE - 28000670
Product number:
28000670
Immediately available
€50.44
Content:
1 Stück
Prices incl. VAT plus shipping costs net €42.39
Product information "Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE - 28000670"
Here we have summarized the most important features of the ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE: You can set the output current between 150 - 400 mA with the ready2mains programmer, I-select 2 Plugs or DALI with the ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE. The ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE has an efficiency up to 86% at a max. Output power of 17W.Low stand-by losses result in high energy savings and high efficiency. The dimming can be via DALI DT 6, DSI, switchDIM, corridorFUNCTION and the dimming range is 1-100%. The driver is equipped with the IP protection IP20. An integrated service editor logs certain events. The ECG-LED Tridonic LCA 17W 250-700mA one4all SR PRE also has various protective functions such as: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain. Tridonic guarantees a nominal life of 100,000 as well as a 5-year guarantee
Downloads & Documents
Login
Electrical data
| output current: | 250, 300, 350, 400, 450, 500, 550, 600, 650, 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 9006210523644 |
|---|---|
| Length | 200 mm |
| Width | 70 mm |
| Height | 31 mm |
| Weight | 203 g |
