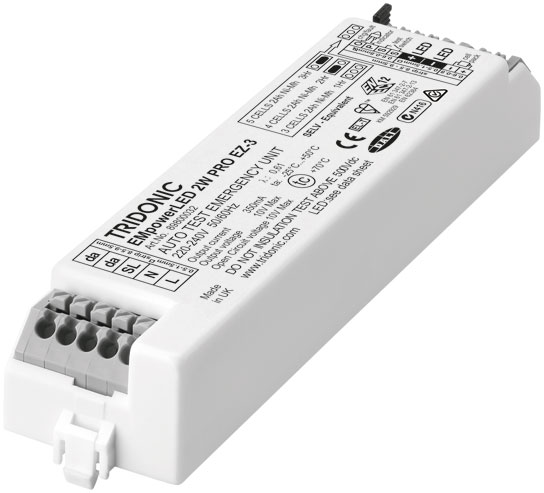

Tridonic EMpowerLED 2W PRO EZ-3 CLIP-FIX - 89800032
Product information "Tridonic EMpowerLED 2W PRO EZ-3 CLIP-FIX - 89800032"
Deep discharge protection
Polarity reversal protection for battery
Low-profile casing (21 x 30 mm cross-section)
Electronic multi-level charge system
{nobullet} Tests:
Status of the battery
Function test
Duration test
Two-colour status display LED
Addressing function, patented (“EZ easy addressing”)
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Status of the LED
Emergency lighting LED Driver with DALI interface and automatic test function
DALI interface for controlled testing and monitoring
DALI switchable in mains operation (on/off); the switched phase SL must be switched on
Short-circuit-proof battery connection
Charge condition
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Polarity reversal protection for battery
Low-profile casing (21 x 30 mm cross-section)
Electronic multi-level charge system
{nobullet} Tests:
Status of the battery
Function test
Duration test
Two-colour status display LED
Addressing function, patented (“EZ easy addressing”)
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Status of the LED
Emergency lighting LED Driver with DALI interface and automatic test function
DALI interface for controlled testing and monitoring
DALI switchable in mains operation (on/off); the switched phase SL must be switched on
Short-circuit-proof battery connection
Charge condition
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| max housing temperature (tc-max): | 70 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Logistic data
| item category: | LED drivers |
|---|

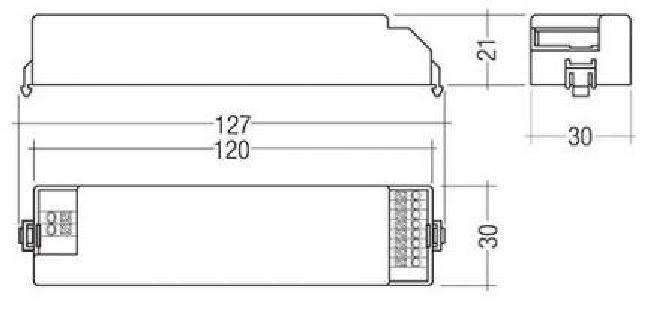

Dimensions & packaging
| EAN | 9006210341118 |
|---|---|
| Length | 127 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 101 g |
