Tridonic LCBI 15W 500mA BASIC PHASE-CUT LP - 89800256
Tridonic GmbH & Co KG
Tridonic LCBI 15W 500mA BASIC PHASE-CUT LP - 89800256
Product number:
89800256
Immediately available
€25.39
Content:
1 Stück
Prices incl. VAT plus shipping costs net €21.34
Product information "Tridonic LCBI 15W 500mA BASIC PHASE-CUT LP - 89800256"
Push-in terminals
Compact dimensions
Short-circuit protection
SELV
Connecting cable, wire cross-section 0.5 – 1.5 mm²
Type of protection IP20
Overload protection
No-load protection
Nominal life-time of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Casing: polycarbonate, white
350, 500 or 700 mA output current
Output power 15/16 W
Output dimmed analogue (current amplitude)
Dimming range typ. 5 to 100 % (depending on dimmer)
Dimmable via leading edge and trailing edge phase dimmers
Compact dimensions
Short-circuit protection
SELV
Connecting cable, wire cross-section 0.5 – 1.5 mm²
Type of protection IP20
Overload protection
No-load protection
Nominal life-time of 50,000 h (at max ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Casing: polycarbonate, white
350, 500 or 700 mA output current
Output power 15/16 W
Output dimmed analogue (current amplitude)
Dimming range typ. 5 to 100 % (depending on dimmer)
Dimmable via leading edge and trailing edge phase dimmers
Downloads & Documents
Login
Electrical data
| output current: | 500 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 85 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -40 °C |
| environment temperature to: | 85 °C |
Photometric data
| color: | white |
|---|---|
| interface: | phase cut and gating |
Logistic data
| item category: | LED drivers |
|---|

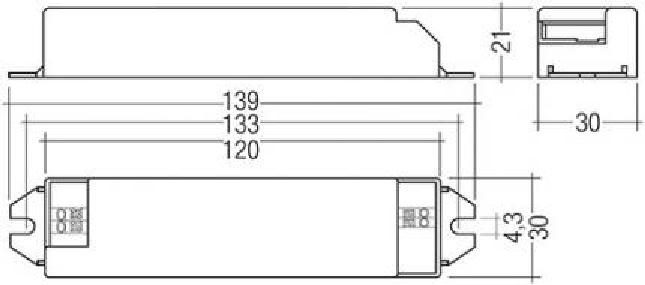

Dimensions & packaging
| EAN | 9006210478685 |
|---|---|
| Length | 139 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 53 g |
