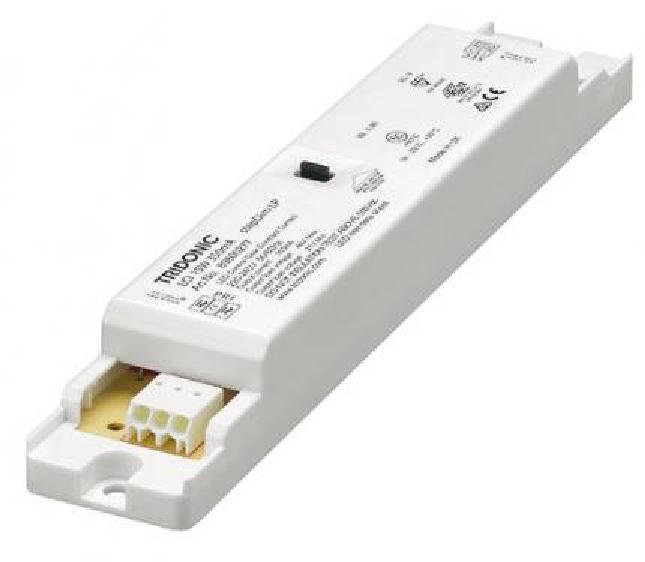

Tridonic LCI 15W 700mA stepDim lp - 89800279
Product information "Tridonic LCI 15W 700mA stepDim lp - 89800279"
Push-in terminals
Compact dimensions
Short-circuit protection
SELV
Connecting cable, wire cross-section 0.5 – 1.5 mm²
Type of protection IP20
Overload protection
No-load protection
Constant current LED Driver for luminaire installation
Casing: polycarbonate, white
350, 500 or 700 mA output current
Output dimmed analogue (current amplitude)
Nominal life-time of 50,000 h (at ta max. with a failure rate ≤ 0.2 % per 1,000 h)
Output power 15/16/16.5 W
Implemented stepDIM function
10 or 30 % dimming level settable
Can be used with a standard motion detector (Simple CORRIDOR FUNCTION)
Compact dimensions
Short-circuit protection
SELV
Connecting cable, wire cross-section 0.5 – 1.5 mm²
Type of protection IP20
Overload protection
No-load protection
Constant current LED Driver for luminaire installation
Casing: polycarbonate, white
350, 500 or 700 mA output current
Output dimmed analogue (current amplitude)
Nominal life-time of 50,000 h (at ta max. with a failure rate ≤ 0.2 % per 1,000 h)
Output power 15/16/16.5 W
Implemented stepDIM function
10 or 30 % dimming level settable
Can be used with a standard motion detector (Simple CORRIDOR FUNCTION)
Downloads & Documents
Login
Electrical data
| output current: | 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 85 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -40 °C |
| environment temperature to: | 85 °C |
Photometric data
| setting type: | resistors |
|---|---|
| color: | white |
| interface: | stepDIM |
Logistic data
| item category: | LED drivers |
|---|

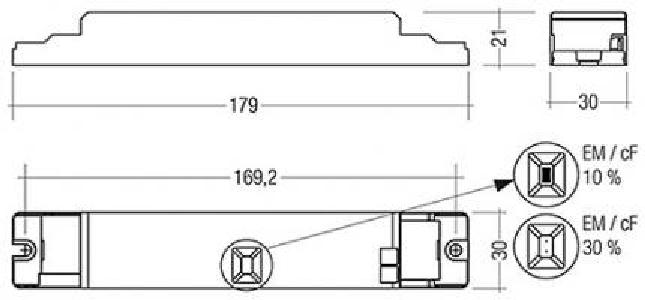

Dimensions & packaging
| EAN | 9006210496139 |
|---|---|
| Length | 179 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 650 g |
