Tridonic LED driver dimmable LC 60/150-550/230 o4a NF h16 EXC4 – 28003603
Tridonic GmbH & Co KG
Tridonic LED driver dimmable LC 60/150-550/230 o4a NF h16 EXC4 – 28003603
Product number:
28003603
Shipping in 14 day(s)
€32.61
Content:
1 Stück
Prices incl. VAT plus shipping costs net €27.40
Product information "Tridonic LED driver dimmable LC 60/150-550/230 o4a NF h16 EXC4 – 28003603"
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Adjustable output current between 150 and 550 mA
- Max. output power 60 W
- Up to 94 % efficiency
- Power input on stand-by < 0.14 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Low profile metal casing with white cover
- Only 16 mm housing height
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
- Constant light output function (eCLO)
- Power-up fading at AC
- Switch off the driver with fade2zero
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE
- Support NFC multiple programming (full carton box)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee
Typical applications
- For linear/area lighting in office applications
Downloads & Documents
Electrical data
| output current: | 150, 200, 250, 300, 350, 400, 450, 500, 550 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, EAC, ENEC, UKCA |
| lifetime: | 100000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI-2, corridor function, DSI, NFC, switchDIM |

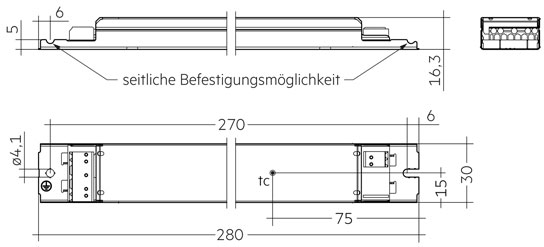

Dimensions & packaging
| Length | 280 mm |
|---|---|
| Width | 30 mm |
| Height | 16 mm |
| Weight | 155 g |
