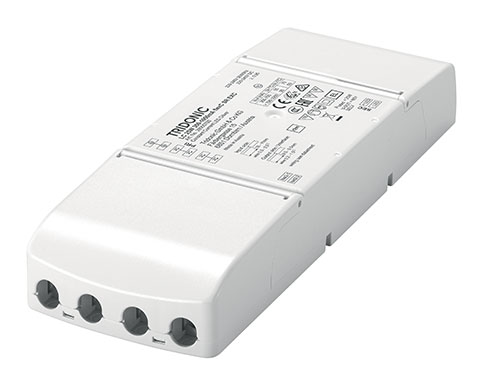

Tridonic LED-Driver LC 25W 350-1050mA flexC SR EXC - 28000700

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 25W 350-1050mA flexC SR EXC - 28000700

Product number: 28000700

Immediately available

€28.61


Content: 1 Stück

Prices incl. VAT plus shipping costs net €24.04

Product information "Tridonic LED-Driver LC 25W 350-1050mA flexC SR EXC - 28000700"

The emergency-current capable, dimmable electronic ballast for LED modules LC 25W 350-1050mA flexC SR EXC from the EXCITE series from Tridonic is perfectly suited for installation in downlights, spotlights and decorative applications. It can be used for luminaire Installation as well as Independent mounting

With a ready2mains programmer or I-select 2, the output current can be adjusted in 1 mA steps between 350 and 1050 mA. The LED driver has an energy efficiency of up to 86%. Its rated output is 25 watts.

With its ready2mains interface, the constant current LED driver can be dimmed in a dimming range of 15 to 100% depending on the load. The LED driver can also be configured via the ready2mains interface. In addition, the driver features 0°/45 ° push terminals.

The housing is made of white polycarbonate and is equipped with IP20 protection. Additionally, the LED driver is protected against overtemperature, short-circuit, overload, no-load and at input voltage range.

There are no tools required for installation. The LED driver is suitable for cable cross-sections up to 2.5 mm². The service life is 100,000 hours. Tridonic offers a five-year warranty on the LED ECG.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
max housing temperature (tc-max): 70 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 55 °C
Photometric data
color: white
interface: ready2mains
Logistic data
item category: LED drivers

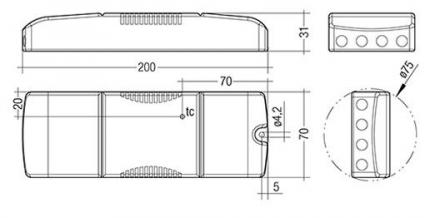

Dimensions & packaging
EAN 9006210525747
Length 200 mm
Width 70 mm
Height 31 mm
Weight 180 g
