Tridonic LED-Driver LC 35/24V bDW SC PRE2 - 28002415
Product information "Tridonic LED-Driver LC 35/24V bDW SC PRE2 - 28002415"
basicDIM Wireless constant voltage LED ECG

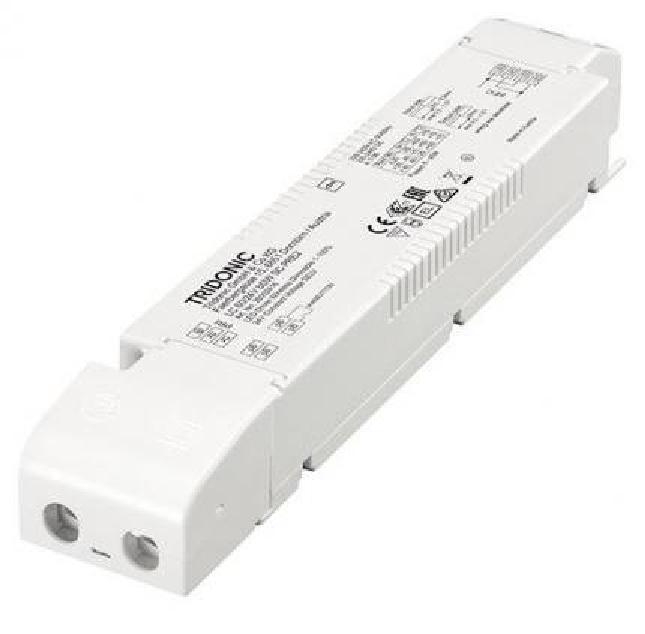

The 24 V constant voltage LED driver LC 35/24V bDW SC PRE2 from the Premium series by Tridonic is suitable for luminaire installation or independent mounting. It has a nominal output of 35 watts.
Ideal applications include cove lighting, facade accent lighting and indirect ceiling lighting. In addition, the LED ECG is suitable for emergency lighting systems according to EN 50172.
The LED driver automatically establishes a wireless communication network with up to 127 nodes. basicDIM Wireless offers various dimming options in a range of 1-100%, eliminating the need for an external dimmer. With the help of ready2mains the configuration via the mains is possible.
CASAMBI functionality: lighting control via app
The basicDIM Wireless LED driver also has all the CASAMBI functionality: You can integrate it into any CASAMBI Bluetooth network and then conveniently control it via an app on your smartphone or tablet.

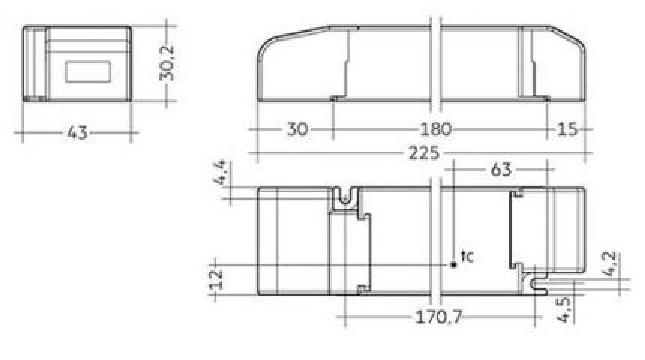

The housing of the LED ECG has a small design (195 x 43 x 30,2 mm) and a small cross section. There are 45 ° push-terminals for easy wiring. The output terminals (+/-) are equipped twice - for more flexibility in the application.
The nominal life is up to 50,000 hours. Tridonic offers a 5-year warranty.
You can download the CASAMBI app here for free:
Downloads & Documents
ENEC-Zertifikat-Tridonic-LED-Treiber-LC-35-24V-bDW-SC-PRE2-28002415_1592167638_3
Datenblatt-Tridonic-LED-Treiber-LC-35-24V-bDW-SC-PRE2-28002415_1592167638_4
Declaration-of-Confirmity-Tridonic-LED-Driver-LC-35-24V-bDW-SC-PRE2-28002415_1592167638_5
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-35-24V-bDW-SC-PRE2-28002415_1592167638_7
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| lifetime: | 50000 h |
| system power: | 35 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| dimming range from: | 1 % |
| color: | white |
| interface: | basicDIM Wireless |
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 9006210665160 |
|---|---|
| Length | 195 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 130 g |
