Tridonic LED-Driver LC 75W 100-400mA flexC lp EXC - 28000713
Tridonic LED-Driver LC 75W 100-400mA flexC lp EXC - 28000713
Shipping in 28 day(s)
€33.32
Prices incl. VAT plus shipping costs net €28.00
Product information "Tridonic LED-Driver LC 75W 100-400mA flexC lp EXC - 28000713"

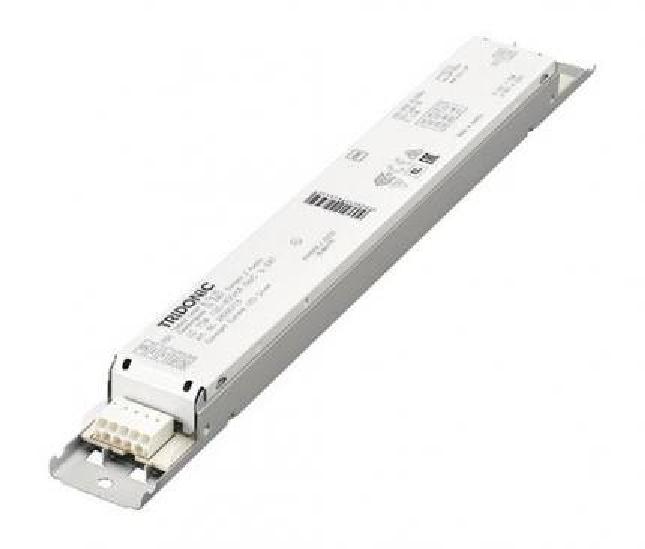

The LC 75W 100-400mA flexC lp EXC from the EXCITE series by TRIDONIC is a dimmable constant current LED driver with IP20 protection for luminaire installation.
The output current can be set between 100mA and 400mA in 1mA steps via the ready2mains programmer or I-select 2 plugs in 1mA steps. The maximum output power is 75 W. Thanks to the achieved efficiency of up to 94% and the dimming function, you benefit from high energy savings.
The LED ECG is suitable for luminaires of protection class I and protection class II. It is equipped with IP20 protection. It has a "low profile" metal case with a white cover.
The LED driver can be dimmed by means of the ready2mains gateway in a dimming range of 8-100% (load-dependent). In addition, flexible configuration is possible via the ready2mains interface and I-select 2 plugs. Also 0 ° push terminals are available.
The LED driver is protected against overtemperature, short circuit, overload and no load. The life span is up to 100,000 hours. TRIDONIC offers a 5-year guarantee on the electronic ballast.
An ideal application area is linear and area lighting in office applications. The LED ECG is also suitable for emergency lighting systems according to EN 50172.
Downloads & Documents
Login
Electrical data
| output current: | 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 65 °C |
Photometric data
| color: | white |
|---|---|
| interface: | ready2mains |
Logistic data
| item category: | LED drivers |
|---|

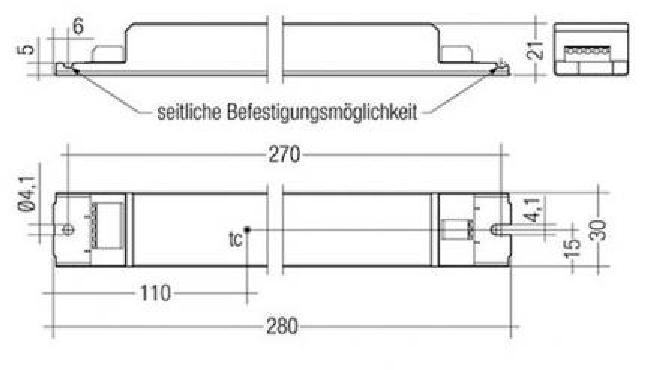

Dimensions & packaging
| EAN | 9006210526492 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 180 g |
