Tridonic LED-Driver LCA 150W 24V one4all SC PRE - 28001437
Tridonic LED-Driver LCA 150W 24V one4all SC PRE - 28001437
Immediately available
€135.34
Prices incl. VAT plus shipping costs net €113.73
Product information "Tridonic LED-Driver LCA 150W 24V one4all SC PRE - 28001437"

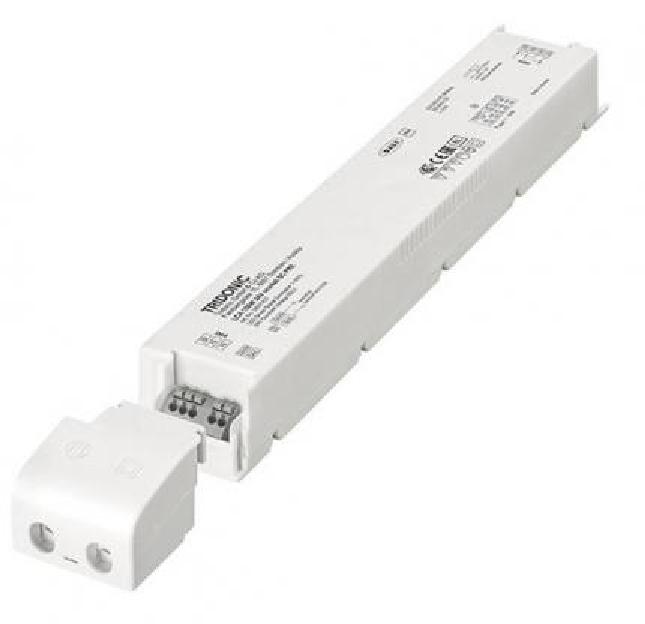

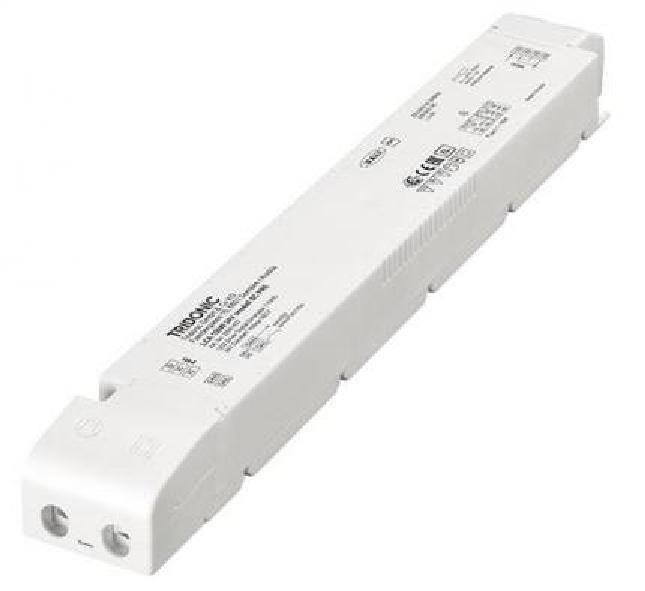

The LCA 150W 24V one4all SC PRE from Tridonic is a dimmable 24V constant-voltage LED driver for flexible constant-voltage LED strips. Ideal application areas are cove lighting, facade accent lighting and ceiling application. It is also suitable for emergency escape lighting systems according to EN 50172. The rated power is 150 watts.
Thanks to its one4all interface, the electronic ballast offers various dimming possibilities in a dimming range of 0-100%: DALI, DSI switchDIM and corridorFUNCTION. No external dimmer is required. In addition, the ready2mains interface of the Tridonic LED ECG allows dimming and configuration via the mains.
The IP20-protected housing in small design (dimensions: 325 x 43 x 30 mm) has a streched-compact strain relief. 45 ° push terminals for simple wiring are also available. For more flexibility in the application, the LED driver has two output channels (+ / -).
The nominal lifetime is up to 50,000 hours. Tridonic offers a five-year warranty on the LED ECG.
Downloads & Documents
Login
Electrical data
| output voltage: | 24 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 500000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

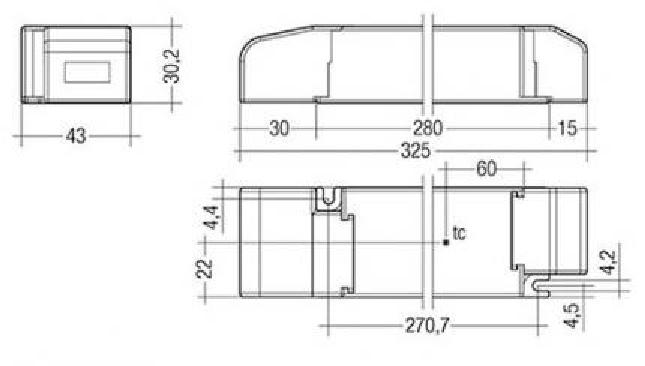

Dimensions & packaging
| EAN | 9006210583853 |
|---|---|
| Length | 325 mm |
| Width | 43 mm |
| Height | 30 mm |
