Tridonic LED-Driver LCBI 10W 350mA PHASE-CUT/1-10V SR - 87500274

Tridonic GmbH & Co KG

Tridonic LED-Driver LCBI 10W 350mA PHASE-CUT/1-10V SR - 87500274

Product number: 87500274

Immediately available

€15.93


Content: 1 Stück

Prices incl. VAT plus shipping costs net €13.39

Product information "Tridonic LED-Driver LCBI 10W 350mA PHASE-CUT/1-10V SR - 87500274"

10W LED ECG for built-in/independent mounting

The constant current LED driver LCBI 10W 350mA PHASE-CUT / 1-10V SR with SELV protection from the Basic series by Tridonic is suitable for installation in luminaires of protection class I and II as well as luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711 suitable. In addition, it can be mounted independently. The LED ECG has a maximum output power of 10 watts. The IP20-protected housing is made of white polycarbonate and has integrated screw terminals.

Dimmable (1-10V, leading/trailing edge phase)

The output current can be selected between 180, 350 and 500 mA. The LED driver is dimmed via  leading edge and trailing edge phase dimmer or via 1-10 V. The output is dimmed

analogously (current amplitude). The dimming range is typically between 10 and 100% (depending on the dimmer).

The LED ECG has a temperature protection according to EN 61347-2-13 C5e. It is also protected against overload, short-circuit and no-load. An overshoot of the output current when the mains is switched on or off is prevented. The nominal lifetime is up to 50,000 hours. Tridonic offers a 5-year warranty.


0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 350
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
Casing
form type: rectangular
max housing temperature (tc-max): 60 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 40 °C
Photometric data
color: white
interface: 1-10 V
Logistic data
item category: LED drivers

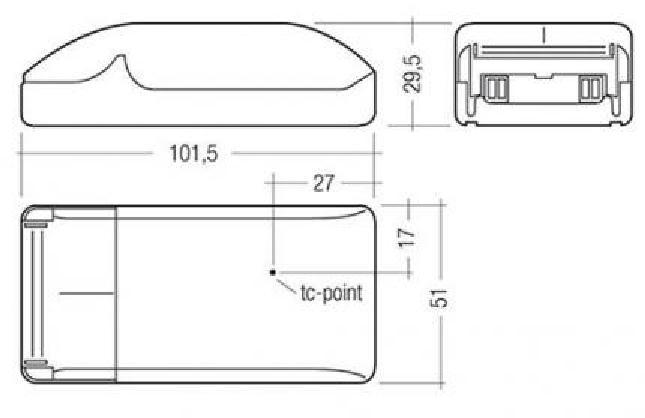

Dimensions & packaging
EAN 9006210510507
Length 102 mm
Width 51 mm
Height 30 mm
