Tridonic LED-Driver LCU 48V 75W DC-STR FO lp - 28000816
Tridonic LED-Driver LCU 48V 75W DC-STR FO lp - 28000816
Immediately available
€104.47
Prices incl. VAT plus shipping costs net €87.79
Product information "Tridonic LED-Driver LCU 48V 75W DC-STR FO lp - 28000816"

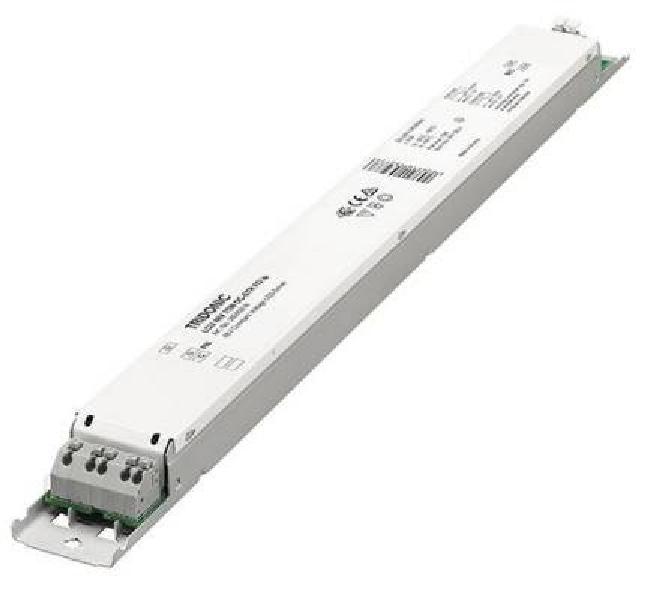

The emergency-current capable DC-String constant voltage LED driver LCU 48V 75W DC-STR FO lp from TRIDONIC is suitable for installation in luminaires of protection class I and II. It is compatible with other DC-String components.
The rated power of the LED ECG is up to 75 watts. It has an efficiency of up to 92%.

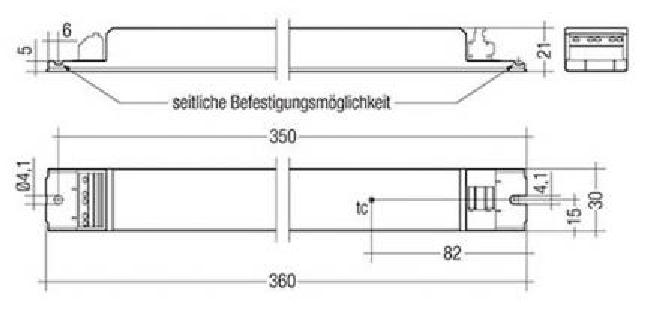

The "Low Profile" metal case with white cover is IP20 protected and measures 360 x 30 x 21 mm.
The TRIDONIC LED driver has a temperature protection according to EN 61347-2-13 C5e and an Intelligent Temperature Guard (overtemperature protection). It is also protected against short circuits and overload.
The nominal life is up to 50,000 hours. TRIDONIC offers a 5 year warranty on the LED ECG.
Downloads & Documents
Declaration-of-Confirmity-Tridonic-LED-Driver-LCU-48V-75W-DC-STR-FO-lp-28000816_1592173115_4
Datenblatt-Tridonic-LED-Treiber-LCU-48V-75W-DC-STR-FO-lp-28000816_1592173115_5
Datasheet-Tridonic-LED-Driver-LCU-48V-75W-DC-STR-FO-lp-28000816_1592173115_6
ENEC-Zertifikat-Tridonic-LED-Treiber-LCU-48V-75W-DC-STR-FO-lp-28000816_1592173115_7
ENEC-Certificate-Tridonic-LED-Driver-LCU-48V-75W-DC-STR-FO-lp-28000816_1592173115_8
Login
Electrical data
| output voltage: | 48 |
|---|---|
| operating mode: | constant voltage |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 9006210532776 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 270 g |
