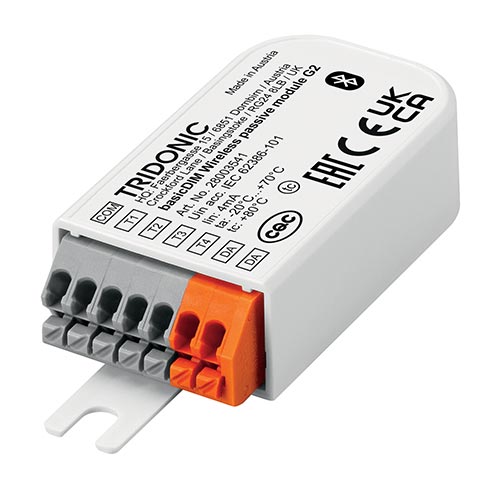

Tridonic light control basicDIM Wireless passive module G2 - 28003541
Tridonic GmbH & Co KG
Tridonic light control basicDIM Wireless passive module G2 - 28003541
Product number:
28003541
Shipping in 28 day(s)
€100.13
Content:
1 Stück
Prices incl. VAT plus shipping costs net €84.14
Product information "Tridonic light control basicDIM Wireless passive module G2 - 28003541"
- Wireless controllable with an Android / iOS smart device
- No need for an external gateway device
- Forms automatically a wireless communication network with up to 250 nodes (1)
- Small form factor for luminaire installation
- Digital output: Standalone DALI (compatible)
- Supplied via DALI line
- 4 independent push-button inputs
- Easily implemented RGB and colour temperature controls
- Device firmware can be updated over-the-air
- 5 years guarantee
Downloads & Documents
Electrical data
| conformity: | KC |
|---|---|
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| environment temperature from: | -20 °C |
| environment temperature to: | 75 °C |
Photometric data
| color: | grey |
|---|

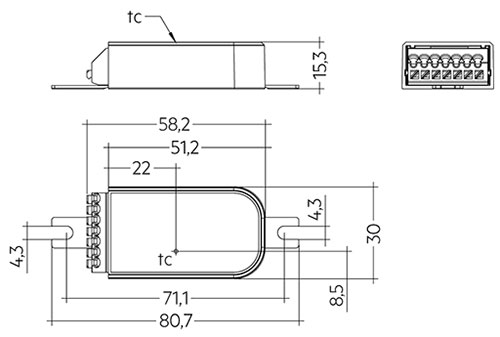

Dimensions & packaging
| EAN | 9006210745916 |
|---|---|
| Length | 80.7 mm |
| Width | 30 mm |
| Height | 15.3 mm |
