Tridonic Light Management Accessories mounted ACU sensor housing 032 IP66 WH - 28001873
Tridonic Light Management Accessories mounted ACU sensor housing 032 IP66 WH - 28001873
Shipping in 21 day(s)
€22.49
Prices incl. VAT plus shipping costs net €18.90
Product information "Tridonic Light Management Accessories mounted ACU sensor housing 032 IP66 WH - 28001873"
Sensor mounting frame with "click in" system

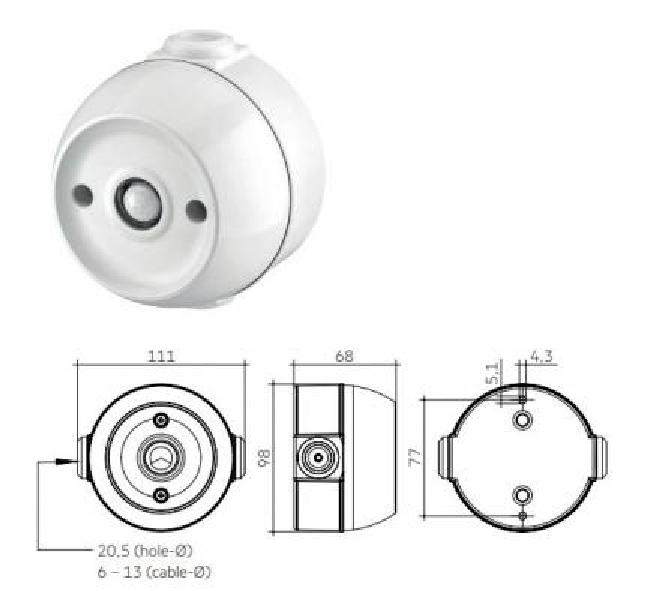

The Tridonic mounting frame Sensor housing ACU 032 IP66 WH allows direct mounting of wired sensors of the „MSensor G3 SFI 30 PIR 10DPI WH“ model to the ceiling. For installation, the sensor has an easy "click in" system. The sensor is powered via the DALI circuit.
A mounting kit with screws and decorative plugs is included. The included 3 mm seal provides the ideal IP protection. Optional, there is a shutter available which reduces the movement detection area allowing to decrease the movement detection area from 360° to 240°
Casing made of UV-stabilized plastic
The IP66-protected housing is made of white polycarbonate (UV-stabilized plastic). The casing was tested with the glow wire test according to EN 61347-1 and passed at 850 ° C.
Downloads & Documents
Login
Casing
| ballproof: | no |
|---|---|
| protection type: | IP66 |
Photometric data
| sensor: | yes |
|---|---|
| color: | white |
Dimensions & packaging
| EAN | 9006210678948 |
|---|---|
| Height | 68 mm |
