Tridonic resistor I-SELECT 2 PLUG 400MA BL - 28001112
Tridonic resistor I-SELECT 2 PLUG 400MA BL - 28001112
Shipping in 28 day(s)
€0.92
Prices incl. VAT plus shipping costs net €0.77
Product information "Tridonic resistor I-SELECT 2 PLUG 400MA BL - 28001112"

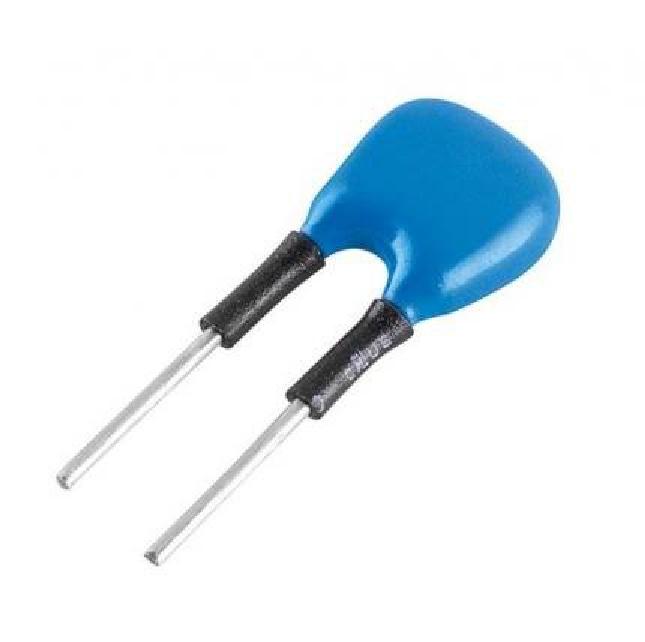

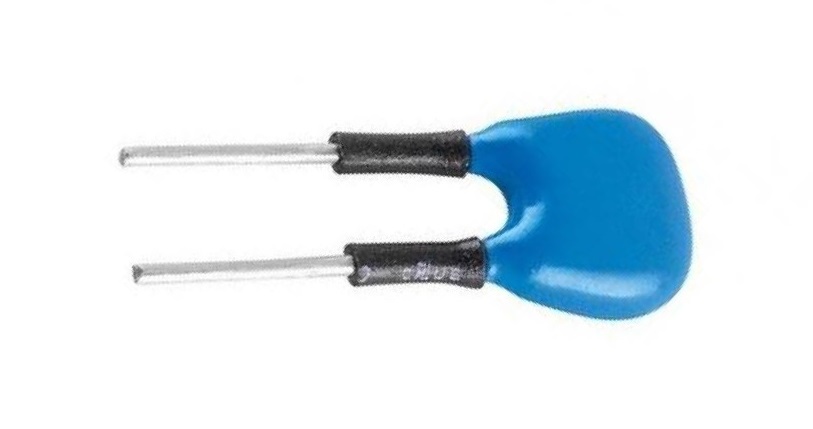

With the TRIDONIC I-SELECT 2 PLUG 400MA BL ready-to-use resistor for 400mA and 12.50 kO, you can adjust the output current of TRIDONIC LED control gears. It is compatible with LED drivers with I-Select 2 interface as well as LED drivers of the PRE and EXC series.
The resistor is base isolated and has a resistor power of 0.25 watts. The current tolerance is + - 2% in addition to the output current tolerance.
Downloads & Documents
Datasheet-Tridonic-resistor-I-SELECT-2-PLUG-400MA-BL-28001112_1592146868_6
Konformitaetserklaerung-Tridonic-Widerstand-I-SELECT-2-PLUG-400MA-BL-28001112_1592146868_7
Declaration-of-Conformity-Tridonic-resistor-I-SELECT-2-PLUG-400MA-BL-28001112_1592146868_3
Login
Electrical data
| through wiring: | no |
|---|
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| color: | blue |
Logistic data
| item category: | installation materials |
|---|

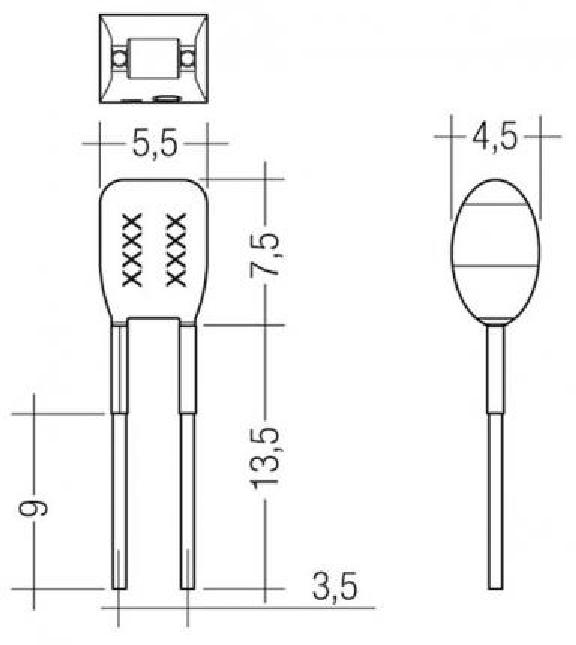

Dimensions & packaging
| EAN | 9006210550596 |
|---|---|
| Length | 21 mm |
| Width | 4 mm |
| Height | 5 mm |
