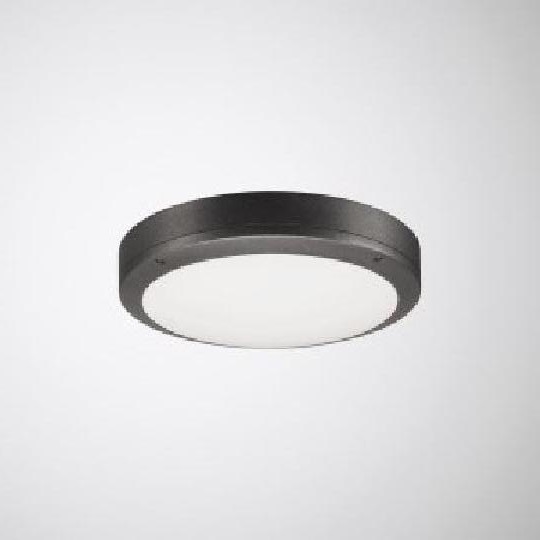

Round, decorative LED surface-mounted luminaire for wall and ceiling mounting with IP65 protection rating. The wall luminaire, thanks to its optical and technical design features, harmonises with other luminaires that might be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian light intensity distribution. LED system with settable luminaire luminous flux and settable light colour for modifying the lighting quality to individual application requirements and on-site conditions. The LED system forms a solidly connected unit with the luminaire cover and can be replaced. Selectable luminaire luminous flux: 1600 / 2200 lm. Resultant connected load: 16 / 24 W. Selectable colour temperature: 3000 / 4000 K, general colour rendering index (CRI) Ra > 85. Mean rated service life L80(tq 25 °C) = 100,000 h. Luminaire body of die-cast aluminium. Cover of highly impact-resistant PMMA, opal. Anthracite colour, similar to DB703 with metal effect, highly weather resistant, powder-coated. Luminaire diameter 350 mm, luminaire height 83 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK10. With 3-pole terminal to 2.5 mm² for mains connection and further wiring. With electronic transformer, switchable. The LED system with control gear unit is suitable for operation on direct voltage supply grids. With integrated HF motion sensor. Recommended mounting height with wall mounting max. 2,5 m. Recommended height for ceiling mounting max. 4 m. Settable light threshold, range of detection and hold time.
